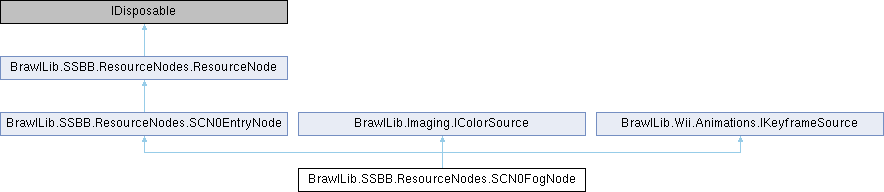

Inheritance diagram for BrawlLib.SSBB.ResourceNodes.SCN0FogNode:

Public Member Functions
bool	HasPrimary (int id)

ARGBPixel	GetPrimaryColor (int id)

void	SetPrimaryColor (int id, ARGBPixel color)

string	PrimaryColorName (int id)

int	ColorCount (int id)

ARGBPixel	GetColor (int index, int id)

void	SetColor (int index, int id, ARGBPixel color)

bool	GetColorConstant (int id)

void	SetColorConstant (int id, bool constant)

void	MakeSolid (RGBAPixel color)

void	MakeList ()

override bool	OnInitialize ()

override int	OnCalculateSize (bool force)

override void	OnRebuild (VoidPtr address, int length, bool force)

FogAnimationFrame	GetAnimFrame (float index)

KeyframeEntry	GetKeyframe (int keyFrameMode, int index)

void	RemoveKeyframe (int keyFrameMode, int index)

void	SetKeyframe (int keyFrameMode, int index, float value)

Public Member Functions inherited from BrawlLib.SSBB.ResourceNodes.SCN0EntryNode
override bool	OnInitialize ()

override void	OnRebuild (VoidPtr address, int length, bool force)

IColorSource	FindColorMatch (bool constant, int frameCount, int id)

int	WriteColors (ref int flags, int bit, RGBAPixel solidColor, List< RGBAPixel > colors, bool constant, int frameCount, VoidPtr valueAddr, ref VoidPtr thisMatchAddr, VoidPtr thatMatchAddr, RGBAPixel *dataAddr)

void	DecodeKeyframes (KeyframeArray kf, VoidPtr dataAddr, int flags, int fixedBit)
	Reads keyframes from an address and sets them in the keyframe array provided. More...

Public Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
void	OnRenamed ()

List< ResourceNode >	GetChildrenRecursive ()
	Used primarily to get bone lists. Kept for all resource nodes for utility. More...

virtual void	SignalPropertyChange ()

virtual void	Dispose ()

void	SelectChildAtIndex (int index)

void	UpdateProperties ()

void	UpdateCurrentControl ()

virtual bool	MoveUp ()

virtual bool	MoveDown ()

virtual void	OnMoved ()

virtual void	DoMoveDown ()

virtual void	DoMoveDown (bool select)

virtual void	DoMoveUp ()

virtual void	DoMoveUp (bool select)

virtual bool	AddUp ()

virtual bool	AddDown ()

virtual bool	ToParent ()

void	Populate (int levels=-1)

virtual void	OnPopulate ()

void	Initialize (ResourceNode parent, FileMap source)

void	Initialize (ResourceNode parent, VoidPtr address, int length)

void	Initialize (ResourceNode parent, DataSource origSource)

virtual void	Initialize (ResourceNode parent, DataSource origSource, DataSource uncompSource)

virtual bool	OnInitialize ()

virtual void	Restore ()

virtual void	Remove ()

virtual void	RemoveChild (ResourceNode child)

virtual void	AddChild (ResourceNode child)

virtual void	AddChild (ResourceNode child, bool change)

virtual void	InsertChild (ResourceNode child, int index)

virtual void	InsertChild (ResourceNode child, bool change, int index)

void	SetSizeInternal (int size)

virtual void	Replace (string fileName)

virtual void	Replace (ResourceNode node)

virtual void	Replace (string fileName, FileMapProtect prot, FileOptions options)

virtual void	ReplaceRaw (VoidPtr address, int length)

virtual void	ReplaceRaw (FileMap map)

virtual void	Export (string outPath)

void	Export (FileStream outStream)

virtual void	ExportUncompressed (string outPath)

void	ExportUncompressed (FileStream outStream)

virtual void	Rebuild ()

virtual void	Rebuild (bool force)

virtual void	Rebuild (VoidPtr address, int length, bool force)

virtual void	OnRebuild (VoidPtr address, int length, bool force)

virtual int	CalculateSize (bool force)

virtual int	OnCalculateSize (bool force)

void	Merge ()

void	Merge (bool forceBuild)

ResourceNode	FindChildByType (string path, bool searchChildren, params ResourceType[] types)

ResourceNode	FindChildByType (string path, bool searchChildren, StringComparison compare, params ResourceType[] types)

ResourceNode	FindChild (string path)

ResourceNode	FindChild (string path, bool searchChildren)

ResourceNode	FindChild (string path, StringComparison compare)

ResourceNode	FindChild (string path, bool searchChildren, StringComparison compare)

ResourceNode[]	FindChildrenByClassType (string path, Type type)

ResourceNode[]	FindChildrenByType (string path, ResourceType type)

ResourceNode[]	FindChildrenByTypeInGroup (string path, ResourceType type, byte group)

ResourceNode[]	FindChildrenByName (string name)

unsafe string	FindName (string name)

ResourceNode	FindEmbeddedIndex (int index)

virtual unsafe byte[]	MD5 ()
	Find the MD5 checksum of this node's data. If this node doesn't have any data (BRESGroupNode, for example), this method will return null. More...

string	MD5Str ()
	Get the result of the MD5() function as a string of hexadecimal digits. If MD5() returns null, this method will return an empty string. More...

ResourceNode	PrevSibling ()

ResourceNode	NextSibling ()

override string	ToString ()

virtual void	SortChildren ()

bool	HasPrimary (int id)

ARGBPixel	GetPrimaryColor (int id)

void	SetPrimaryColor (int id, ARGBPixel color)

string	PrimaryColorName (int id)

int	ColorCount (int id)

ARGBPixel	GetColor (int index, int id)

void	SetColor (int index, int id, ARGBPixel color)

bool	GetColorConstant (int id)

void	SetColorConstant (int id, bool constant)

Public Attributes
SCN0FogFlags	_flags = (SCN0FogFlags) 0xE0

bool	_constantColor = true

KeyframeCollection	_keyframes

Public Attributes inherited from BrawlLib.SSBB.ResourceNodes.SCN0EntryNode
int[]	_dataLengths = {0, 0, 0}

VoidPtr[]	_dataAddrs = new VoidPtr[3]

Public Attributes inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
Form	_mainForm

string	_name

string	_origPath

ResourceNode	_parent

List< ResourceNode >	_children = new List<ResourceNode>()

int	_calcSize

EventHandler	UpdateControl

MoveEventHandler	MovedDown

ResourceEventHandler	Renamed

ResourceEventHandler	PropertyChanged

ResourceEventHandler	Replaced

ResourceEventHandler	Restored

ResourceChildEventHandler	ChildRemoved

bool	_isPopulating

bool	_replaced

Static Public Attributes
static bool	_generateTangents = true

Properties
override ResourceType	ResourceFileType `[get]`

int	TypeCount `[get]`

bool	ConstantColor `[get, set]`

FogType	Type `[get, set]`

int	FrameCount `[get]`

KeyframeCollection	Keyframes `[get]`

KeyframeArray[]	KeyArrays `[get]`

List< RGBAPixel >	Colors `[get, set]`

RGBAPixel	SolidColor `[get, set]`

Properties inherited from BrawlLib.SSBB.ResourceNodes.SCN0EntryNode
override bool	AllowNullNames `[get]`

SCN0Node	Scene `[get]`

int	NodeIndex `[get]`

int	RealIndex `[get]`

Properties inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
string	FilePath `[get]`

string	FileName `[get]`

string	DirectoryName `[get]`

ResourceNode	RootNode `[get]`

DataSource	OriginalSource `[get]`

DataSource	UncompressedSource `[get]`

DataSource	WorkingSource `[get]`

DataSource	WorkingUncompressed `[get]`

virtual bool	HasChildren `[get]`

virtual ResourceType	ResourceFileType `[get]`

string	NodeType `[get]`

virtual string	TreePathAbsolute `[get]`

virtual string	TreePath `[get]`

virtual int	Level `[get]`

virtual int	MaxNameLength `[get]`

virtual bool	AllowDuplicateNames `[get]`

virtual bool	AllowNullNames `[get]`

virtual string	Name `[get, set]`

ResourceNode	Parent `[get, set]`

List< ResourceNode >	Children `[get]`

int	Index `[get]`

int	HexIndex `[get]`

bool	IsCompressed `[get]`

bool	HasChanged `[get, set]`

bool	IsBranch `[get]`

bool	HasMerged `[get]`

virtual bool	AllowSaving `[get, set]`

virtual bool	IsDirty `[get, set]`

virtual uint	UncompressedSize `[get]`

virtual Type[]	AllowedChildTypes `[get]`

virtual string	Compression `[get, set]`

virtual bool	RetainChildrenOnReplace `[get]`

virtual bool	supportsCompression `[get]`

static MD5CryptoServiceProvider	MD5Provider `[get]`

Properties inherited from BrawlLib.Imaging.IColorSource
int	TypeCount `[get]`

Properties inherited from BrawlLib.Wii.Animations.IKeyframeSource
int	FrameCount `[get]`

KeyframeArray[]	KeyArrays `[get]`

Additional Inherited Members
Static Public Member Functions inherited from BrawlLib.SSBB.ResourceNodes.SCN0EntryNode
static void	DecodeKeyframes (KeyframeArray kf, VoidPtr dataAddr)
	Reads keyframes at an address, starting with the keyframe array header. More...

static int	EncodeKeyframes (KeyframeArray kf, VoidPtr dataAddr, VoidPtr offset, ref int flags, int fixedBit)

static int	EncodeKeyframes (KeyframeArray kf, VoidPtr dataAddr, VoidPtr offset)

static int	EncodeKeyframes (KeyframeArray kf, VoidPtr dataAddr)

Static Public Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
static ResourceNode[]	FindAllSubNodes (ResourceNode root)

static ResourceNode	FindNode (ResourceNode root, string path, bool searchChildren, StringComparison compare)

Protected Member Functions inherited from BrawlLib.SSBB.ResourceNodes.SCN0EntryNode
void	ReadColors (uint flags, uint bit, ref RGBAPixel solidColor, ref List< RGBAPixel > colors, int frameCount, VoidPtr address, ref bool constant, ref int numEntries)

void	CalcKeyLen (KeyframeArray keyframes)

Protected Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
void	ForceReplacedEvent ()

virtual void	MergeInternal ()

Events inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
SelectEventHandler	SelectChild

EventHandler	UpdateProps

MoveEventHandler	MovedUp

ResourceEventHandler	Disposing

ResourceChildEventHandler	ChildAdded

ResourceChildInsertEventHandler	ChildInserted

Member Function Documentation

◆ ColorCount()

int BrawlLib.SSBB.ResourceNodes.SCN0FogNode.ColorCount ( int id )

inline

Implements BrawlLib.Imaging.IColorSource.

        {
            return _numEntries == 0 ? 1 : _numEntries;
        }

◆ GetAnimFrame()

FogAnimationFrame BrawlLib.SSBB.ResourceNodes.SCN0FogNode.GetAnimFrame ( float index )

inline

        {
            FogAnimationFrame frame;
            float* dPtr = (float*) &frame;
            for (int x = 0; x < 2; x++)
            {
                KeyframeArray a = KeyArrays[x];
                *dPtr++ = a.GetFrameValue(index);
                frame.SetBools(x, a.GetKeyframe((int) index) != null);
                frame.Index = index;
            }

            //Ignore alpha value; not used
            if (ConstantColor)
            {
                frame.Color = _solidColor;
            }
            else
            {
                int colorIndex = (int) Math.Truncate(index);
                Vector3 color = _colors[colorIndex];
                if (colorIndex + 1 < _colors.Count)
                {
                    float frac = index - colorIndex;
                    Vector3 interp = _colors[colorIndex + 1];
                    color += (interp - color) * frac;
                }

                frame.Color = color;
            }

            frame.Type = Type;
            return frame;
        }

◆ GetColor()

ARGBPixel BrawlLib.SSBB.ResourceNodes.SCN0FogNode.GetColor	(	int	index,
		int	id
	)

inline

Implements BrawlLib.Imaging.IColorSource.

        {
            return _numEntries != 0 && index < _colors.Count ? (ARGBPixel) _colors[index] : (ARGBPixel) _solidColor;
        }

◆ GetColorConstant()

bool BrawlLib.SSBB.ResourceNodes.SCN0FogNode.GetColorConstant ( int id )

inline

Implements BrawlLib.Imaging.IColorSource.

        {
            return ConstantColor;
        }

◆ GetKeyframe()

KeyframeEntry BrawlLib.SSBB.ResourceNodes.SCN0FogNode.GetKeyframe	(	int	keyFrameMode,
		int	index
	)

inline

        {
            return KeyArrays[keyFrameMode].GetKeyframe(index);
        }

◆ GetPrimaryColor()

ARGBPixel BrawlLib.SSBB.ResourceNodes.SCN0FogNode.GetPrimaryColor ( int id )

inline

Implements BrawlLib.Imaging.IColorSource.

        {
            return new ARGBPixel();
        }

◆ HasPrimary()

bool BrawlLib.SSBB.ResourceNodes.SCN0FogNode.HasPrimary ( int id )

inline

Implements BrawlLib.Imaging.IColorSource.

        {
            return false;
        }

◆ MakeList()

void BrawlLib.SSBB.ResourceNodes.SCN0FogNode.MakeList ( )

inline

        {
            _constantColor = false;
            int entries = Scene.FrameCount;
            _numEntries = _colors.Count;
            NumEntries = entries;
        }

◆ MakeSolid()

void BrawlLib.SSBB.ResourceNodes.SCN0FogNode.MakeSolid ( RGBAPixel color )

inline

        {
            _numEntries = 0;
            _constantColor = true;
            _solidColor = color;
            SignalPropertyChange();
        }

◆ OnCalculateSize()

override int BrawlLib.SSBB.ResourceNodes.SCN0FogNode.OnCalculateSize ( bool force )

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            //If a previous fog node has the same exact color array as this one,
            //both offsets will point to only the first color array.
            _match = null;

            //Reset data lengths
            for (int i = 0; i < 3; i++)
            {
                _dataLengths[i] = 0;
            }

            //Null nodes are only empty headers. No data.
            if (_name == "<null>")
            {
                return SCN0Fog.Size;
            }

            //Add keyframe array sizes
            for (int i = 0; i < 2; i++)
            {
                CalcKeyLen(KeyArrays[i]);
            }

            _match = FindColorMatch(_constantColor, FrameCount, 0) as SCN0FogNode;
            if (_match == null && !_constantColor)
            {
                _dataLengths[1] += 4 * (FrameCount + 1);
            }

            return SCN0Fog.Size;
        }

◆ OnInitialize()

override bool BrawlLib.SSBB.ResourceNodes.SCN0FogNode.OnInitialize ( )

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            //Read common header
            base.OnInitialize();

            //Set defaults
            _colors = new List<RGBAPixel>();

            //Read header values
            _flags = (SCN0FogFlags) Data->_flags;
            _type = (FogType) (int) Data->_type;

            //Don't bother reading data if the entry is null
            if (_name == "<null>")
            {
                return false;
            }

            //Read fog color
            ReadColors(
                (uint) _flags,
                (uint) SCN0FogFlags.FixedColor,
                ref _solidColor,
                ref _colors,
                FrameCount,
                Data->_color.Address,
                ref _constantColor,
                ref _numEntries);

            return false;
        }

◆ OnRebuild()

override void BrawlLib.SSBB.ResourceNodes.SCN0FogNode.OnRebuild	(	VoidPtr	address,
		int	length,
		bool	force
	)

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            base.OnRebuild(address, length, force);

            _matchAddr = null;

            if (_name == "<null>")
            {
                return;
            }

            SCN0Fog* header = (SCN0Fog*) address;

            int flags = 0;

            for (int i = 0; i < 2; i++)
            {
                _dataAddrs[0] += EncodeKeyframes(
                    KeyArrays[i],
                    _dataAddrs[0],
                    header->_start.Address + i * 4,
                    ref flags,
                    (int) SCN0FogFlags.FixedStart + i * 0x20);
            }

            _dataAddrs[1] += WriteColors(
                ref flags,
                (int) SCN0FogFlags.FixedColor,
                _solidColor,
                _colors,
                _constantColor,
                FrameCount,
                header->_color.Address,
                ref _matchAddr,
                _match == null ? null : _match._matchAddr,
                (RGBAPixel*) _dataAddrs[1]);

            _flags = (SCN0FogFlags) flags;
            header->_flags = (byte) flags;
            header->_type = (int) _type;
        }

◆ PrimaryColorName()

string BrawlLib.SSBB.ResourceNodes.SCN0FogNode.PrimaryColorName ( int id )

inline

Implements BrawlLib.Imaging.IColorSource.

        {
            return null;
        }

◆ RemoveKeyframe()

void BrawlLib.SSBB.ResourceNodes.SCN0FogNode.RemoveKeyframe	(	int	keyFrameMode,
		int	index
	)

inline

        {
            KeyframeEntry k = KeyArrays[keyFrameMode].Remove(index);
            if (k != null && _generateTangents)
            {
                k._prev.GenerateTangent();
                k._next.GenerateTangent();
                SignalPropertyChange();
            }
        }

◆ SetColor()

void BrawlLib.SSBB.ResourceNodes.SCN0FogNode.SetColor	(	int	index,
		int	id,
		ARGBPixel	color
	)

inline

Implements BrawlLib.Imaging.IColorSource.

        {
            if (_numEntries == 0)
            {
                _solidColor = color;
            }
            else
            {
                _colors[index] = color;
            }

            SignalPropertyChange();
        }

◆ SetColorConstant()

void BrawlLib.SSBB.ResourceNodes.SCN0FogNode.SetColorConstant	(	int	id,
		bool	constant
	)

inline

Implements BrawlLib.Imaging.IColorSource.

        {
            ConstantColor = constant;
        }

◆ SetKeyframe()

void BrawlLib.SSBB.ResourceNodes.SCN0FogNode.SetKeyframe	(	int	keyFrameMode,
		int	index,
		float	value
	)

inline

        {
            KeyframeArray keys = KeyArrays[keyFrameMode];
            bool exists = keys.GetKeyframe(index) != null;
            KeyframeEntry k = keys.SetFrameValue(index, value);

            if (!exists && !_generateTangents)
            {
                k.GenerateTangent();
            }

            if (_generateTangents)
            {
                k.GenerateTangent();
                k._prev.GenerateTangent();
                k._next.GenerateTangent();
            }

            SignalPropertyChange();
        }

◆ SetPrimaryColor()

void BrawlLib.SSBB.ResourceNodes.SCN0FogNode.SetPrimaryColor	(	int	id,
		ARGBPixel	color
	)

inline

Implements BrawlLib.Imaging.IColorSource.

37 {

38 }

Member Data Documentation

◆ _constantColor

bool BrawlLib.SSBB.ResourceNodes.SCN0FogNode._constantColor = true

◆ _flags

SCN0FogFlags BrawlLib.SSBB.ResourceNodes.SCN0FogNode._flags = (SCN0FogFlags) 0xE0

◆ _generateTangents

bool BrawlLib.SSBB.ResourceNodes.SCN0FogNode._generateTangents = true

static

◆ _keyframes

KeyframeCollection BrawlLib.SSBB.ResourceNodes.SCN0FogNode._keyframes

Property Documentation

◆ Colors

List<RGBAPixel> BrawlLib.SSBB.ResourceNodes.SCN0FogNode.Colors

getset

        {
            get => _colors;
            set
            {
                _colors = value;
                SignalPropertyChange();
            }
        }

◆ ConstantColor

bool BrawlLib.SSBB.ResourceNodes.SCN0FogNode.ConstantColor

getset

        {
            get => _constantColor;
            set
            {
                if (_constantColor != value)
                {
                    _constantColor = value;
                    if (_constantColor)
                    {
                        MakeSolid(new RGBAPixel());
                    }
                    else
                    {
                        MakeList();
                    }

                    UpdateCurrentControl();
                }
            }
        }

◆ FrameCount

int BrawlLib.SSBB.ResourceNodes.SCN0FogNode.FrameCount

get

Implements BrawlLib.Wii.Animations.IKeyframeSource.

◆ KeyArrays

KeyframeArray [] BrawlLib.SSBB.ResourceNodes.SCN0FogNode.KeyArrays

get

Implements BrawlLib.Wii.Animations.IKeyframeSource.

◆ Keyframes

KeyframeCollection BrawlLib.SSBB.ResourceNodes.SCN0FogNode.Keyframes

get

        {
            get
            {
                if (_keyframes == null)
                {
                    _keyframes = new KeyframeCollection(2, Scene == null ? 1 : Scene.FrameCount + (Scene.Loop ? 1 : 0));
                    if (Data != null && _name != "<null>")
                    {
                        for (int i = 0; i < 2; i++)
                        {
                            DecodeKeyframes(
                                KeyArrays[i],
                                Data->_start.Address + i * 4,
                                (int) _flags,
                                (int) SCN0FogFlags.FixedStart + i * 0x20);
                        }
                    }
                }

                return _keyframes;
            }
        }

◆ ResourceFileType

override ResourceType BrawlLib.SSBB.ResourceNodes.SCN0FogNode.ResourceFileType

get

◆ SolidColor

RGBAPixel BrawlLib.SSBB.ResourceNodes.SCN0FogNode.SolidColor

getset

        {
            get => _solidColor;
            set
            {
                _solidColor = value;
                SignalPropertyChange();
            }
        }

◆ Type

FogType BrawlLib.SSBB.ResourceNodes.SCN0FogNode.Type

getset

        {
            get => _type;
            set
            {
                _type = value;
                SignalPropertyChange();
            }
        }

◆ TypeCount

int BrawlLib.SSBB.ResourceNodes.SCN0FogNode.TypeCount

get

Implements BrawlLib.Imaging.IColorSource.

The documentation for this class was generated from the following file:

BrawlLib/SSBB/ResourceNodes/SCN0/SCN0FogNode.cs

Public Member Functions

Public Attributes

Static Public Attributes

Properties

Additional Inherited Members

Member Function Documentation

◆ ColorCount()

◆ GetAnimFrame()

◆ GetColor()

◆ GetColorConstant()

◆ GetKeyframe()

◆ GetPrimaryColor()

◆ HasPrimary()

◆ MakeList()

◆ MakeSolid()

◆ OnCalculateSize()

◆ OnInitialize()

◆ OnRebuild()

◆ PrimaryColorName()

◆ RemoveKeyframe()

◆ SetColor()

◆ SetColorConstant()

◆ SetKeyframe()

◆ SetPrimaryColor()

Member Data Documentation

◆ _constantColor

◆ _flags

◆ _generateTangents

◆ _keyframes

Property Documentation

◆ Colors

◆ ConstantColor

◆ FrameCount

◆ KeyArrays

◆ Keyframes

◆ ResourceFileType

◆ SolidColor

◆ Type

◆ TypeCount
