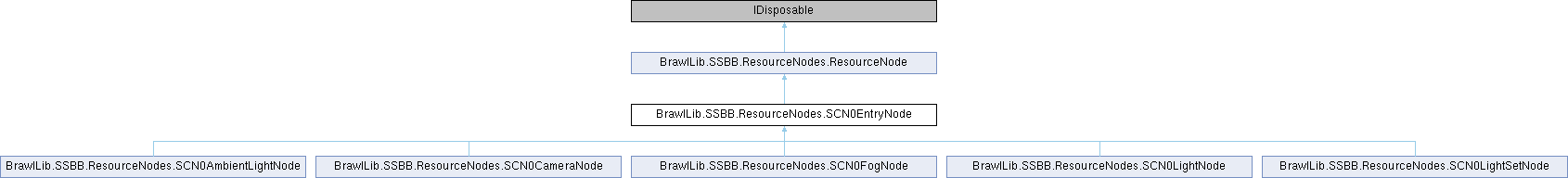

Inheritance diagram for BrawlLib.SSBB.ResourceNodes.SCN0EntryNode:

Public Member Functions
override bool	OnInitialize ()

override void	OnRebuild (VoidPtr address, int length, bool force)

IColorSource	FindColorMatch (bool constant, int frameCount, int id)

int	WriteColors (ref int flags, int bit, RGBAPixel solidColor, List< RGBAPixel > colors, bool constant, int frameCount, VoidPtr valueAddr, ref VoidPtr thisMatchAddr, VoidPtr thatMatchAddr, RGBAPixel *dataAddr)

void	DecodeKeyframes (KeyframeArray kf, VoidPtr dataAddr, int flags, int fixedBit)
	Reads keyframes from an address and sets them in the keyframe array provided. More...

Public Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
void	OnRenamed ()

List< ResourceNode >	GetChildrenRecursive ()
	Used primarily to get bone lists. Kept for all resource nodes for utility. More...

virtual void	SignalPropertyChange ()

virtual void	Dispose ()

void	SelectChildAtIndex (int index)

void	UpdateProperties ()

void	UpdateCurrentControl ()

virtual bool	MoveUp ()

virtual bool	MoveDown ()

virtual void	OnMoved ()

virtual void	DoMoveDown ()

virtual void	DoMoveDown (bool select)

virtual void	DoMoveUp ()

virtual void	DoMoveUp (bool select)

virtual bool	AddUp ()

virtual bool	AddDown ()

virtual bool	ToParent ()

void	Populate (int levels=-1)

virtual void	OnPopulate ()

void	Initialize (ResourceNode parent, FileMap source)

void	Initialize (ResourceNode parent, VoidPtr address, int length)

void	Initialize (ResourceNode parent, DataSource origSource)

virtual void	Initialize (ResourceNode parent, DataSource origSource, DataSource uncompSource)

virtual bool	OnInitialize ()

virtual void	Restore ()

virtual void	Remove ()

virtual void	RemoveChild (ResourceNode child)

virtual void	AddChild (ResourceNode child)

virtual void	AddChild (ResourceNode child, bool change)

virtual void	InsertChild (ResourceNode child, int index)

virtual void	InsertChild (ResourceNode child, bool change, int index)

void	SetSizeInternal (int size)

virtual void	Replace (string fileName)

virtual void	Replace (ResourceNode node)

virtual void	Replace (string fileName, FileMapProtect prot, FileOptions options)

virtual void	ReplaceRaw (VoidPtr address, int length)

virtual void	ReplaceRaw (FileMap map)

virtual void	Export (string outPath)

void	Export (FileStream outStream)

virtual void	ExportUncompressed (string outPath)

void	ExportUncompressed (FileStream outStream)

virtual void	Rebuild ()

virtual void	Rebuild (bool force)

virtual void	Rebuild (VoidPtr address, int length, bool force)

virtual void	OnRebuild (VoidPtr address, int length, bool force)

virtual int	CalculateSize (bool force)

virtual int	OnCalculateSize (bool force)

void	Merge ()

void	Merge (bool forceBuild)

ResourceNode	FindChildByType (string path, bool searchChildren, params ResourceType[] types)

ResourceNode	FindChildByType (string path, bool searchChildren, StringComparison compare, params ResourceType[] types)

ResourceNode	FindChild (string path)

ResourceNode	FindChild (string path, bool searchChildren)

ResourceNode	FindChild (string path, StringComparison compare)

ResourceNode	FindChild (string path, bool searchChildren, StringComparison compare)

ResourceNode[]	FindChildrenByClassType (string path, Type type)

ResourceNode[]	FindChildrenByType (string path, ResourceType type)

ResourceNode[]	FindChildrenByTypeInGroup (string path, ResourceType type, byte group)

ResourceNode[]	FindChildrenByName (string name)

unsafe string	FindName (string name)

ResourceNode	FindEmbeddedIndex (int index)

virtual unsafe byte[]	MD5 ()
	Find the MD5 checksum of this node's data. If this node doesn't have any data (BRESGroupNode, for example), this method will return null. More...

string	MD5Str ()
	Get the result of the MD5() function as a string of hexadecimal digits. If MD5() returns null, this method will return an empty string. More...

ResourceNode	PrevSibling ()

ResourceNode	NextSibling ()

override string	ToString ()

virtual void	SortChildren ()

Static Public Member Functions
static void	DecodeKeyframes (KeyframeArray kf, VoidPtr dataAddr)
	Reads keyframes at an address, starting with the keyframe array header. More...

static int	EncodeKeyframes (KeyframeArray kf, VoidPtr dataAddr, VoidPtr offset, ref int flags, int fixedBit)

static int	EncodeKeyframes (KeyframeArray kf, VoidPtr dataAddr, VoidPtr offset)

static int	EncodeKeyframes (KeyframeArray kf, VoidPtr dataAddr)

Static Public Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
static ResourceNode[]	FindAllSubNodes (ResourceNode root)

static ResourceNode	FindNode (ResourceNode root, string path, bool searchChildren, StringComparison compare)

Public Attributes
int[]	_dataLengths = {0, 0, 0}

VoidPtr[]	_dataAddrs = new VoidPtr[3]

Public Attributes inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
Form	_mainForm

string	_name

string	_origPath

ResourceNode	_parent

List< ResourceNode >	_children = new List<ResourceNode>()

int	_calcSize

EventHandler	UpdateControl

MoveEventHandler	MovedDown

ResourceEventHandler	Renamed

ResourceEventHandler	PropertyChanged

ResourceEventHandler	Replaced

ResourceEventHandler	Restored

ResourceChildEventHandler	ChildRemoved

bool	_isPopulating

bool	_replaced

Protected Member Functions
void	ReadColors (uint flags, uint bit, ref RGBAPixel solidColor, ref List< RGBAPixel > colors, int frameCount, VoidPtr address, ref bool constant, ref int numEntries)

void	CalcKeyLen (KeyframeArray keyframes)

Protected Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
void	ForceReplacedEvent ()

virtual void	MergeInternal ()

Properties
override bool	AllowNullNames `[get]`

SCN0Node	Scene `[get]`

int	NodeIndex `[get]`

int	RealIndex `[get]`

Properties inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
string	FilePath `[get]`

string	FileName `[get]`

string	DirectoryName `[get]`

ResourceNode	RootNode `[get]`

DataSource	OriginalSource `[get]`

DataSource	UncompressedSource `[get]`

DataSource	WorkingSource `[get]`

DataSource	WorkingUncompressed `[get]`

virtual bool	HasChildren `[get]`

virtual ResourceType	ResourceFileType `[get]`

string	NodeType `[get]`

virtual string	TreePathAbsolute `[get]`

virtual string	TreePath `[get]`

virtual int	Level `[get]`

virtual int	MaxNameLength `[get]`

virtual bool	AllowDuplicateNames `[get]`

virtual bool	AllowNullNames `[get]`

virtual string	Name `[get, set]`

ResourceNode	Parent `[get, set]`

List< ResourceNode >	Children `[get]`

int	Index `[get]`

int	HexIndex `[get]`

bool	IsCompressed `[get]`

bool	HasChanged `[get, set]`

bool	IsBranch `[get]`

bool	HasMerged `[get]`

virtual bool	AllowSaving `[get, set]`

virtual bool	IsDirty `[get, set]`

virtual uint	UncompressedSize `[get]`

virtual Type[]	AllowedChildTypes `[get]`

virtual string	Compression `[get, set]`

virtual bool	RetainChildrenOnReplace `[get]`

virtual bool	supportsCompression `[get]`

static MD5CryptoServiceProvider	MD5Provider `[get]`

Additional Inherited Members
Events inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
SelectEventHandler	SelectChild

EventHandler	UpdateProps

MoveEventHandler	MovedUp

ResourceEventHandler	Disposing

ResourceChildEventHandler	ChildAdded

ResourceChildInsertEventHandler	ChildInserted

Member Function Documentation

◆ CalcKeyLen()

void BrawlLib.SSBB.ResourceNodes.SCN0EntryNode.CalcKeyLen ( KeyframeArray keyframes )

inlineprotected

        {
            if (keyframes._keyCount > 1)
            {
                _dataLengths[0] += SCN0KeyframesHeader.Size + keyframes._keyCount * SCN0KeyframeStruct.Size + 4;
            }
        }

◆ DecodeKeyframes() [1/2]

static void BrawlLib.SSBB.ResourceNodes.SCN0EntryNode.DecodeKeyframes	(	KeyframeArray	kf,
		VoidPtr	dataAddr
	)

inlinestatic

Reads keyframes at an address, starting with the keyframe array header.

Parameters

kf	The array to set decoded frames to.
dataAddr	The address of the keyframe array header.

        {
            SCN0KeyframesHeader* header = (SCN0KeyframesHeader*) dataAddr;
            SCN0KeyframeStruct* entry = header->Data;
            for (int i = 0; i < header->_numFrames; i++, entry++)
            {
                kf.SetFrameValue((int) entry->_index, entry->_value, true)._tangent = entry->_tangent;
            }
        }

◆ DecodeKeyframes() [2/2]

void BrawlLib.SSBB.ResourceNodes.SCN0EntryNode.DecodeKeyframes	(	KeyframeArray	kf,
		VoidPtr	dataAddr,
		int	flags,
		int	fixedBit
	)

inline

Reads keyframes from an address and sets them in the keyframe array provided.

Parameters

kf	The array to set decoded frames to.
dataAddr	The address of the OFFSET to the data.
flags	The flags used to determine if the value is constant.
fixedBit	The bit located in the flags that determines if the value is constant.

        {
            if ((flags & fixedBit) != 0)
            {
                kf[0] = *(bfloat*) dataAddr;
            }
            else
            {
                DecodeKeyframes(kf, dataAddr + *(bint*) dataAddr);
            }
        }

◆ EncodeKeyframes() [1/3]

static int BrawlLib.SSBB.ResourceNodes.SCN0EntryNode.EncodeKeyframes	(	KeyframeArray	kf,
		VoidPtr	dataAddr
	)

inlinestatic

        {
            VoidPtr start = dataAddr;
            SCN0KeyframesHeader* header = (SCN0KeyframesHeader*) dataAddr;
            *header = new SCN0KeyframesHeader(kf._keyCount);
            KeyframeEntry frame, root = kf._keyRoot;

            SCN0KeyframeStruct* entry = header->Data;
            for (frame = root._next; frame._index != -1; frame = frame._next)
            {
                *entry++ = new SCN0KeyframeStruct(frame._tangent, frame._index, frame._value);
            }

            *(bint*) entry = 0;
            dataAddr = (VoidPtr) entry + 4;
            return dataAddr - start;
        }

◆ EncodeKeyframes() [2/3]

static int BrawlLib.SSBB.ResourceNodes.SCN0EntryNode.EncodeKeyframes	(	KeyframeArray	kf,
		VoidPtr	dataAddr,
		VoidPtr	offset
	)

inlinestatic

        {
            *(bint*) offset = (int) dataAddr - (int) offset;
            return EncodeKeyframes(kf, dataAddr);
        }

◆ EncodeKeyframes() [3/3]

static int BrawlLib.SSBB.ResourceNodes.SCN0EntryNode.EncodeKeyframes	(	KeyframeArray	kf,
		VoidPtr	dataAddr,
		VoidPtr	offset,
		ref int	flags,
		int	fixedBit
	)

inlinestatic

        {
            if (kf._keyCount > 1)
            {
                flags &= ~fixedBit;
                return EncodeKeyframes(kf, dataAddr, offset);
            }

            flags |= fixedBit;
            *(bfloat*) offset = kf._keyRoot._next._value;
            return 0;
        }

◆ FindColorMatch()

IColorSource BrawlLib.SSBB.ResourceNodes.SCN0EntryNode.FindColorMatch	(	bool	constant,
		int	frameCount,
		int	id
	)

inline

        {
            IColorSource match = null;
            IColorSource s = this as IColorSource;
            if (!constant && s != null)
            {
                foreach (IColorSource n in ((ResourceNode) s).Parent.Children)
                {
                    if (n == s)
                    {
                        break;
                    }

                    if (!n.GetColorConstant(id))
                    {
                        for (int i = 0; i <= frameCount; i++)
                        {
                            if (n.GetColor(i, id) != s.GetColor(i, id))
                            {
                                break;
                            }

                            if (i == frameCount)
                            {
                                match = n;
                            }
                        }
                    }

                    if (match != null)
                    {
                        break;
                    }
                }
            }

            return match;
        }

◆ OnInitialize()

override bool BrawlLib.SSBB.ResourceNodes.SCN0EntryNode.OnInitialize ( )

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

Reimplemented in BrawlLib.SSBB.ResourceNodes.SCN0LightNode, and BrawlLib.SSBB.ResourceNodes.SCN0LightSetNode.

        {
            if (!_replaced && _name == null)
            {
                if (Header->_stringOffset != 0)
                {
                    _name = Header->ResourceString;
                }
                else
                {
                    _name = "<null>";
                }
            }

            SetSizeInternal(Header->_length);

            return false;
        }

◆ OnRebuild()

override void BrawlLib.SSBB.ResourceNodes.SCN0EntryNode.OnRebuild	(	VoidPtr	address,
		int	length,
		bool	force
	)

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

Reimplemented in BrawlLib.SSBB.ResourceNodes.SCN0LightNode, and BrawlLib.SSBB.ResourceNodes.SCN0LightSetNode.

        {
            SCN0CommonHeader* header = (SCN0CommonHeader*) address;
            header->_length = length;
        }

◆ ReadColors()

void BrawlLib.SSBB.ResourceNodes.SCN0EntryNode.ReadColors	(	uint	flags,
		uint	bit,
		ref RGBAPixel	solidColor,
		ref List< RGBAPixel >	colors,
		int	frameCount,
		VoidPtr	address,
		ref bool	constant,
		ref int	numEntries
	)

inlineprotected

        {
            colors = new List<RGBAPixel>();
            if (constant = (flags & bit) != 0)
            {
                solidColor = *(RGBAPixel*) address;
                numEntries = 0;
            }
            else
            {
                numEntries = frameCount + 1;
                RGBAPixel* addr = (RGBAPixel*) (address + *(bint*) address);
                for (int x = 0; x < numEntries; x++)
                {
                    colors.Add(*addr++);
                }
            }
        }

◆ WriteColors()

int BrawlLib.SSBB.ResourceNodes.SCN0EntryNode.WriteColors	(	ref int	flags,
		int	bit,
		RGBAPixel	solidColor,
		List< RGBAPixel >	colors,
		bool	constant,
		int	frameCount,
		VoidPtr	valueAddr,
		ref VoidPtr	thisMatchAddr,
		VoidPtr	thatMatchAddr,
		RGBAPixel *	dataAddr
	)

inline

        {
            if (!constant)
            {
                flags &= ~bit;
                thisMatchAddr = dataAddr;
                if (thatMatchAddr == null)
                {
                    VoidPtr start = dataAddr;
                    *(bint*) valueAddr = (int) dataAddr - (int) valueAddr;
                    for (int x = 0; x <= frameCount; x++)
                    {
                        if (x < colors.Count)
                        {
                            *dataAddr++ = colors[x];
                        }
                        else
                        {
                            *dataAddr++ = new RGBAPixel();
                        }
                    }

                    return dataAddr - start;
                }

                *(bint*) valueAddr = (int) thatMatchAddr - (int) valueAddr;
                return 0;
            }

            flags |= bit;
            *(RGBAPixel*) valueAddr = solidColor;
            return 0;
        }

Member Data Documentation

◆ _dataAddrs

VoidPtr [] BrawlLib.SSBB.ResourceNodes.SCN0EntryNode._dataAddrs = new VoidPtr[3]

◆ _dataLengths

int [] BrawlLib.SSBB.ResourceNodes.SCN0EntryNode._dataLengths = {0, 0, 0}

Property Documentation

◆ AllowNullNames

override bool BrawlLib.SSBB.ResourceNodes.SCN0EntryNode.AllowNullNames

get

◆ NodeIndex

int BrawlLib.SSBB.ResourceNodes.SCN0EntryNode.NodeIndex

get

◆ RealIndex

int BrawlLib.SSBB.ResourceNodes.SCN0EntryNode.RealIndex

get

◆ Scene

SCN0Node BrawlLib.SSBB.ResourceNodes.SCN0EntryNode.Scene

get

        {
            get
            {
                ResourceNode n = _parent;
                while (!(n is SCN0Node) && n != null)
                {
                    n = n._parent;
                }

                return n as SCN0Node;
            }
        }

The documentation for this class was generated from the following file:

BrawlLib/SSBB/ResourceNodes/SCN0/SCN0GroupNode.cs

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Properties

Additional Inherited Members

Member Function Documentation

◆ CalcKeyLen()

◆ DecodeKeyframes() [1/2]

◆ DecodeKeyframes() [2/2]

◆ EncodeKeyframes() [1/3]

◆ EncodeKeyframes() [2/3]

◆ EncodeKeyframes() [3/3]

◆ FindColorMatch()

◆ OnInitialize()

◆ OnRebuild()

◆ ReadColors()

◆ WriteColors()

Member Data Documentation

◆ _dataAddrs

◆ _dataLengths

Property Documentation

◆ AllowNullNames

◆ NodeIndex

◆ RealIndex

◆ Scene
