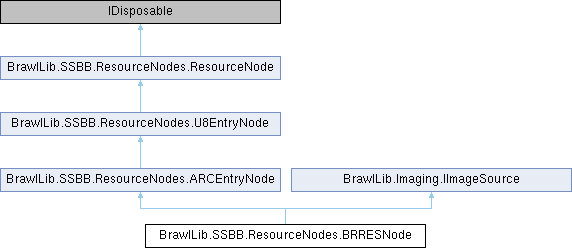

Inheritance diagram for BrawlLib.SSBB.ResourceNodes.BRRESNode:

Public Member Functions
Bitmap	GetImage (int index)

override void	OnPopulate ()

override bool	OnInitialize ()

bool	HasFolder< T > ()

BRESGroupNode	GetFolder< T > ()

BRESGroupNode	GetOrCreateFolder< T > ()

T	CreateResource< T > (string name)

void	ExportToFolder (string outFolder)

void	ExportToFolder (string outFolder, string imageExtension)

void	ExportToFolder (string outFolder, string imageExtension, string modelExtension)

void	ReplaceFromFolder (string inFolder)

void	ReplaceFromFolder (string inFolder, string imageExtension)

void	ImportFolder (string inFolder)

override int	OnCalculateSize (bool force)

override void	OnRebuild (VoidPtr address, int size, bool force)

void	ImportGIF (string file)

Public Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ARCEntryNode
bool	isModelData ()

bool	isTextureData ()

void	UpdateName ()

override void	Initialize (ResourceNode parent, DataSource origSource, DataSource uncompSource)

Public Member Functions inherited from BrawlLib.SSBB.ResourceNodes.U8EntryNode
override bool	OnInitialize ()

Public Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
void	OnRenamed ()

List< ResourceNode >	GetChildrenRecursive ()
	Used primarily to get bone lists. Kept for all resource nodes for utility. More...

virtual void	SignalPropertyChange ()

virtual void	Dispose ()

void	SelectChildAtIndex (int index)

void	UpdateProperties ()

void	UpdateCurrentControl ()

virtual bool	MoveUp ()

virtual bool	MoveDown ()

virtual void	OnMoved ()

virtual void	DoMoveDown ()

virtual void	DoMoveDown (bool select)

virtual void	DoMoveUp ()

virtual void	DoMoveUp (bool select)

virtual bool	AddUp ()

virtual bool	AddDown ()

virtual bool	ToParent ()

void	Populate (int levels=-1)

virtual void	OnPopulate ()

void	Initialize (ResourceNode parent, FileMap source)

void	Initialize (ResourceNode parent, VoidPtr address, int length)

void	Initialize (ResourceNode parent, DataSource origSource)

virtual void	Initialize (ResourceNode parent, DataSource origSource, DataSource uncompSource)

virtual bool	OnInitialize ()

virtual void	Restore ()

virtual void	Remove ()

virtual void	RemoveChild (ResourceNode child)

virtual void	AddChild (ResourceNode child)

virtual void	AddChild (ResourceNode child, bool change)

virtual void	InsertChild (ResourceNode child, int index)

virtual void	InsertChild (ResourceNode child, bool change, int index)

void	SetSizeInternal (int size)

virtual void	Replace (string fileName)

virtual void	Replace (ResourceNode node)

virtual void	Replace (string fileName, FileMapProtect prot, FileOptions options)

virtual void	ReplaceRaw (VoidPtr address, int length)

virtual void	ReplaceRaw (FileMap map)

virtual void	Export (string outPath)

void	Export (FileStream outStream)

virtual void	ExportUncompressed (string outPath)

void	ExportUncompressed (FileStream outStream)

virtual void	Rebuild ()

virtual void	Rebuild (bool force)

virtual void	Rebuild (VoidPtr address, int length, bool force)

virtual void	OnRebuild (VoidPtr address, int length, bool force)

virtual int	CalculateSize (bool force)

virtual int	OnCalculateSize (bool force)

void	Merge ()

void	Merge (bool forceBuild)

ResourceNode	FindChildByType (string path, bool searchChildren, params ResourceType[] types)

ResourceNode	FindChildByType (string path, bool searchChildren, StringComparison compare, params ResourceType[] types)

ResourceNode	FindChild (string path)

ResourceNode	FindChild (string path, bool searchChildren)

ResourceNode	FindChild (string path, StringComparison compare)

ResourceNode	FindChild (string path, bool searchChildren, StringComparison compare)

ResourceNode[]	FindChildrenByClassType (string path, Type type)

ResourceNode[]	FindChildrenByType (string path, ResourceType type)

ResourceNode[]	FindChildrenByTypeInGroup (string path, ResourceType type, byte group)

ResourceNode[]	FindChildrenByName (string name)

unsafe string	FindName (string name)

ResourceNode	FindEmbeddedIndex (int index)

virtual unsafe byte[]	MD5 ()
	Find the MD5 checksum of this node's data. If this node doesn't have any data (BRESGroupNode, for example), this method will return null. More...

string	MD5Str ()
	Get the result of the MD5() function as a string of hexadecimal digits. If MD5() returns null, this method will return an empty string. More...

ResourceNode	PrevSibling ()

ResourceNode	NextSibling ()

override string	ToString ()

virtual void	SortChildren ()

Bitmap	GetImage (int index)

Properties
override ResourceType	ResourceFileType `[get]`

override Type[]	AllowedChildTypes `[get]`

int	ImageCount `[get]`

int	NumModels `[get]`

int	NumFacepoints `[get]`

int	NumVertices `[get]`

int	NumTriangles `[get]`

int	NumNodes `[get]`

Properties inherited from BrawlLib.SSBB.ResourceNodes.ARCEntryNode
override ResourceType	ResourceFileType `[get]`

override string	Compression `[get, set]`

ARCFileType	FileType `[get, set]`

short	FileIndex `[get, set]`

byte	GroupID `[get, set]`

int	AbsoluteIndex `[get]`

short	RedirectIndex `[get, set]`

string	RedirectTargetName `[get]`

string	RedirectTarget `[get, set]`

ResourceNode	RedirectNode `[get]`

Properties inherited from BrawlLib.SSBB.ResourceNodes.U8EntryNode
int	ParentIndex `[get]`

int	ChildEndIndex `[get]`

int	Type `[get]`

int	ID `[get]`

Properties inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
string	FilePath `[get]`

string	FileName `[get]`

string	DirectoryName `[get]`

ResourceNode	RootNode `[get]`

DataSource	OriginalSource `[get]`

DataSource	UncompressedSource `[get]`

DataSource	WorkingSource `[get]`

DataSource	WorkingUncompressed `[get]`

virtual bool	HasChildren `[get]`

virtual ResourceType	ResourceFileType `[get]`

string	NodeType `[get]`

virtual string	TreePathAbsolute `[get]`

virtual string	TreePath `[get]`

virtual int	Level `[get]`

virtual int	MaxNameLength `[get]`

virtual bool	AllowDuplicateNames `[get]`

virtual bool	AllowNullNames `[get]`

virtual string	Name `[get, set]`

ResourceNode	Parent `[get, set]`

List< ResourceNode >	Children `[get]`

int	Index `[get]`

int	HexIndex `[get]`

bool	IsCompressed `[get]`

bool	HasChanged `[get, set]`

bool	IsBranch `[get]`

bool	HasMerged `[get]`

virtual bool	AllowSaving `[get, set]`

virtual bool	IsDirty `[get, set]`

virtual uint	UncompressedSize `[get]`

virtual Type[]	AllowedChildTypes `[get]`

virtual string	Compression `[get, set]`

virtual bool	RetainChildrenOnReplace `[get]`

virtual bool	supportsCompression `[get]`

static MD5CryptoServiceProvider	MD5Provider `[get]`

Properties inherited from BrawlLib.Imaging.IImageSource
int	ImageCount `[get]`

Additional Inherited Members
Static Public Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
static ResourceNode[]	FindAllSubNodes (ResourceNode root)

static ResourceNode	FindNode (ResourceNode root, string path, bool searchChildren, StringComparison compare)

Public Attributes inherited from BrawlLib.SSBB.ResourceNodes.ARCEntryNode
ResourceType	_resourceType = ResourceType.ARCEntry

Public Attributes inherited from BrawlLib.SSBB.ResourceNodes.U8EntryNode
int	_u8Parent

int	_u8FirstNotChild

int	_u8Type

int	_u8Index

Public Attributes inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
Form	_mainForm

string	_name

string	_origPath

ResourceNode	_parent

List< ResourceNode >	_children = new List<ResourceNode>()

int	_calcSize

EventHandler	UpdateControl

MoveEventHandler	MovedDown

ResourceEventHandler	Renamed

ResourceEventHandler	PropertyChanged

ResourceEventHandler	Replaced

ResourceEventHandler	Restored

ResourceChildEventHandler	ChildRemoved

bool	_isPopulating

bool	_replaced

Protected Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ARCEntryNode
virtual string	GetName ()

virtual string	GetName (string fileType)

Protected Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
void	ForceReplacedEvent ()

virtual void	MergeInternal ()

Protected Attributes inherited from BrawlLib.SSBB.ResourceNodes.ARCEntryNode
ResourceNode	redirectTargetNode

Events inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
SelectEventHandler	SelectChild

EventHandler	UpdateProps

MoveEventHandler	MovedUp

ResourceEventHandler	Disposing

ResourceChildEventHandler	ChildAdded

ResourceChildInsertEventHandler	ChildInserted

Member Function Documentation

◆ CreateResource< T >()

T BrawlLib.SSBB.ResourceNodes.BRRESNode.CreateResource< T > ( string name )

inline

Type Constraints

T

:

BRESEntryNode

                                                        : BRESEntryNode
        {
            BRESGroupNode group = GetOrCreateFolder<T>();
            if (group == null)
            {
                return null;
            }

            T n = Activator.CreateInstance<T>();
            n.Name = group.FindName(name);
            group.AddChild(n);

            return n;
        }

◆ ExportToFolder() [1/3]

void BrawlLib.SSBB.ResourceNodes.BRRESNode.ExportToFolder ( string outFolder )

inline

        {
            ExportToFolder(outFolder, ".tex0");
        }

◆ ExportToFolder() [2/3]

void BrawlLib.SSBB.ResourceNodes.BRRESNode.ExportToFolder	(	string	outFolder,
		string	imageExtension
	)

inline

        {
            ExportToFolder(outFolder, imageExtension, ".mdl0");
        }

◆ ExportToFolder() [3/3]

void BrawlLib.SSBB.ResourceNodes.BRRESNode.ExportToFolder	(	string	outFolder,
		string	imageExtension,
		string	modelExtension
	)

inline

        {
            if (!Directory.Exists(outFolder))
            {
                Directory.CreateDirectory(outFolder);
            }

            string ext = "";
            bool extract = true;
            foreach (BRESGroupNode group in Children)
            {
                extract = true;
                if (group.Type == BRESGroupNode.BRESGroupType.Textures)
                {
                    ext = imageExtension;
                }
                else if (group.Type == BRESGroupNode.BRESGroupType.Models)
                {
                    ext = modelExtension;
                }
                else if (group.Type == BRESGroupNode.BRESGroupType.CHR0)
                {
                    ext = ".chr0";
                }
                else if (group.Type == BRESGroupNode.BRESGroupType.CLR0)
                {
                    ext = ".clr0";
                }
                else if (group.Type == BRESGroupNode.BRESGroupType.SRT0)
                {
                    ext = ".srt0";
                }
                else if (group.Type == BRESGroupNode.BRESGroupType.SHP0)
                {
                    ext = ".shp0";
                }
                else if (group.Type == BRESGroupNode.BRESGroupType.PAT0)
                {
                    ext = ".pat0";
                }
                else if (group.Type == BRESGroupNode.BRESGroupType.VIS0)
                {
                    ext = ".vis0";
                }
                else if (group.Type == BRESGroupNode.BRESGroupType.SCN0)
                {
                    ext = ".scn0";
                }
                else if (group.Type == BRESGroupNode.BRESGroupType.Palettes)
                {
                    ext = ".plt0";
                    if (imageExtension != ".tex0")
                    {
                        extract = false;
                    }
                }
                else
                {
                    extract = false;
                }

                if (extract)
                {
                    foreach (BRESEntryNode entry in group.Children)
                    {
                        entry.Export(Path.Combine(outFolder, entry.Name + ext));
                    }
                }
            }
        }

◆ GetFolder< T >()

BRESGroupNode BrawlLib.SSBB.ResourceNodes.BRRESNode.GetFolder< T > ( )

inline

Type Constraints

T

:

BRESEntryNode

                                                    : BRESEntryNode
        {
            if (!HasChildren)
            {
                return null;
            }

            foreach (BRESGroupNode gr in Children)
            {
                if (gr.HasChildren)
                {
                    if (gr.Children[0] is T)
                    {
                        return gr;
                    }
                }
            }

            return null;
        }

◆ GetImage()

Bitmap BrawlLib.SSBB.ResourceNodes.BRRESNode.GetImage ( int index )

inline

Implements BrawlLib.Imaging.IImageSource.

        {
            if (GetFolder<TEX0Node>() == null || GetFolder<TEX0Node>().Children.Count <= index)
            {
                return null;
            }

            return (GetFolder<TEX0Node>().Children[index] as IImageSource)?.GetImage(0);
        }

◆ GetOrCreateFolder< T >()

BRESGroupNode BrawlLib.SSBB.ResourceNodes.BRRESNode.GetOrCreateFolder< T > ( )

inline

Type Constraints

T

:

BRESEntryNode

                                                            : BRESEntryNode
        {
            string groupName;
            BRESGroupNode.BRESGroupType type;
            if (typeof(T) == typeof(TEX0Node))
            {
                type = BRESGroupNode.BRESGroupType.Textures;
                groupName = "Textures(NW4R)";
            }
            else if (typeof(T) == typeof(PLT0Node))
            {
                type = BRESGroupNode.BRESGroupType.Palettes;
                groupName = "Palettes(NW4R)";
            }
            else if (typeof(T) == typeof(MDL0Node))
            {
                type = BRESGroupNode.BRESGroupType.Models;
                groupName = "3DModels(NW4R)";
            }
            else if (typeof(T) == typeof(CHR0Node))
            {
                type = BRESGroupNode.BRESGroupType.CHR0;
                groupName = "AnmChr(NW4R)";
            }
            else if (typeof(T) == typeof(CLR0Node))
            {
                type = BRESGroupNode.BRESGroupType.CLR0;
                groupName = "AnmClr(NW4R)";
            }
            else if (typeof(T) == typeof(SRT0Node))
            {
                type = BRESGroupNode.BRESGroupType.SRT0;
                groupName = "AnmTexSrt(NW4R)";
            }
            else if (typeof(T) == typeof(PAT0Node))
            {
                type = BRESGroupNode.BRESGroupType.PAT0;
                groupName = "AnmTexPat(NW4R)";
            }
            else if (typeof(T) == typeof(SHP0Node))
            {
                type = BRESGroupNode.BRESGroupType.SHP0;
                groupName = "AnmShp(NW4R)";
            }
            else if (typeof(T) == typeof(VIS0Node))
            {
                type = BRESGroupNode.BRESGroupType.VIS0;
                groupName = "AnmVis(NW4R)";
            }
            else if (typeof(T) == typeof(SCN0Node))
            {
                type = BRESGroupNode.BRESGroupType.SCN0;
                groupName = "AnmScn(NW4R)";
            }
            else if (typeof(T) == typeof(RASDNode))
            {
                type = BRESGroupNode.BRESGroupType.External;
                groupName = "External";
            }
            else
            {
                return null;
            }

            BRESGroupNode group = null;
            foreach (BRESGroupNode node in Children)
            {
                if (node.Type == type)
                {
                    group = node;
                    break;
                }
            }

            if (group == null)
            {
                AddChild(group = new BRESGroupNode(groupName, type));
            }

            return group;
        }

◆ HasFolder< T >()

bool BrawlLib.SSBB.ResourceNodes.BRRESNode.HasFolder< T > ( )

inline

Type Constraints

T

:

BRESEntryNode

                                           : BRESEntryNode
        {
            if (!HasChildren)
            {
                return false;
            }

            foreach (BRESGroupNode gr in Children)
            {
                if (gr.HasChildren)
                {
                    if (gr.Children[0] is T)
                    {
                        return true;
                    }
                }
            }

            return false;
        }

◆ ImportFolder()

void BrawlLib.SSBB.ResourceNodes.BRRESNode.ImportFolder ( string inFolder )

inline

        {
            DirectoryInfo dir = new DirectoryInfo(inFolder);
            FileInfo[] files;

            files = dir.GetFiles();
            foreach (FileInfo info in files)
            {
                string ext = Path.GetExtension(info.FullName).ToUpper();
                if (ext == ".PNG" || ext == ".TGA" || ext == ".BMP" || ext == ".JPG" || ext == ".JPEG" ||
                    ext == ".GIF" || ext == ".TIF" || ext == ".TIFF")
                {
                    using (TextureConverterDialog dlg = new TextureConverterDialog())
                    {
                        dlg.ImageSource = info.FullName;
                        dlg.ShowDialog(null, this);
                    }
                }
                else if (ext == ".TEX0")
                {
                    TEX0Node node = NodeFactory.FromFile(null, info.FullName) as TEX0Node;
                    GetOrCreateFolder<TEX0Node>().AddChild(node);
                }
                else if (ext == ".MDL0")
                {
                    MDL0Node node = NodeFactory.FromFile(null, info.FullName) as MDL0Node;
                    GetOrCreateFolder<MDL0Node>().AddChild(node);
                }
                else if (ext == ".CHR0")
                {
                    CHR0Node node = NodeFactory.FromFile(null, info.FullName) as CHR0Node;
                    GetOrCreateFolder<CHR0Node>().AddChild(node);
                }
                else if (ext == ".CLR0")
                {
                    CLR0Node node = NodeFactory.FromFile(null, info.FullName) as CLR0Node;
                    GetOrCreateFolder<CLR0Node>().AddChild(node);
                }
                else if (ext == ".SRT0")
                {
                    SRT0Node node = NodeFactory.FromFile(null, info.FullName) as SRT0Node;
                    GetOrCreateFolder<SRT0Node>().AddChild(node);
                }
                else if (ext == ".SHP0")
                {
                    SHP0Node node = NodeFactory.FromFile(null, info.FullName) as SHP0Node;
                    GetOrCreateFolder<SHP0Node>().AddChild(node);
                }
                else if (ext == ".PAT0")
                {
                    PAT0Node node = NodeFactory.FromFile(null, info.FullName) as PAT0Node;
                    GetOrCreateFolder<PAT0Node>().AddChild(node);
                }
                else if (ext == ".VIS0")
                {
                    VIS0Node node = NodeFactory.FromFile(null, info.FullName) as VIS0Node;
                    GetOrCreateFolder<VIS0Node>().AddChild(node);
                }
            }
        }

◆ ImportGIF()

void BrawlLib.SSBB.ResourceNodes.BRRESNode.ImportGIF ( string file )

inline

        {
            Action<object, DoWorkEventArgs> work = (object sender, DoWorkEventArgs e) =>
            {
                GifDecoder decoder = new GifDecoder();
                decoder.Read(file, null);
                e.Result = decoder;
            };
            Action<object, RunWorkerCompletedEventArgs> completed = (object sender, RunWorkerCompletedEventArgs e) =>
            {
                GifDecoder decoder = e.Result as GifDecoder;
                string s = Path.GetFileNameWithoutExtension(file);
                PAT0Node p = CreateResource<PAT0Node>(s);
                p._loop = true;
                p.CreateEntry();

                PAT0TextureNode textureNode = p.Children[0].Children[0] as PAT0TextureNode;
                PAT0TextureEntryNode entry = textureNode.Children[0] as PAT0TextureEntryNode;

                //Get the number of images in the file
                int frames = decoder.GetFrameCount();

                //The framecount will be created by adding up each image delay.
                float frameCount = 0;

                bool resized = false;
                int w = 0, h = 0;
                Action<int, int> onResized = (newW, newH) =>
                {
                    if (resized != true)
                    {
                        w = newW;
                        h = newH;
                        resized = true;
                    }
                };

                using (TextureConverterDialog dlg = new TextureConverterDialog())
                {
                    using (ProgressWindow progress = new ProgressWindow(RootNode._mainForm, "GIF to PAT0 converter",
                        "Converting, please wait...", true))
                    {
                        Bitmap prev = null;

                        progress.Begin(0, frames, 0);
                        for (int i = 0; i < frames; i++, entry = new PAT0TextureEntryNode())
                        {
                            if (progress.Cancelled)
                            {
                                break;
                            }

                            string name = s + "." + i;

                            dlg.ImageSource = name + ".";

                            using (Bitmap img = (Bitmap) decoder.GetFrame(i))
                            {
                                if (i == 0)
                                {
                                    dlg.LoadImages(img.Copy());
                                    dlg.Resized += onResized;
                                    if (dlg.ShowDialog(null, this) != DialogResult.OK)
                                    {
                                        return;
                                    }

                                    textureNode._hasTex = dlg.TextureData != null;
                                    textureNode._hasPlt = dlg.PaletteData != null;

                                    prev = img.Copy();
                                }
                                else
                                {
                                    //Draw the current image over the previous
                                    //This is because some GIFs use pixels of the previous frame
                                    //in order to compress the overall image data
                                    using (Graphics graphics = Graphics.FromImage(prev))
                                    {
                                        graphics.InterpolationMode = InterpolationMode.HighQualityBicubic;
                                        graphics.CompositingQuality = CompositingQuality.HighQuality;
                                        graphics.CompositingMode = CompositingMode.SourceOver;
                                        graphics.SmoothingMode = SmoothingMode.HighQuality;
                                        graphics.DrawImage(img, 0, 0, prev.Width, prev.Height);
                                    }

                                    dlg.LoadImages(prev.Copy());
                                    if (resized)
                                    {
                                        dlg.ResizeImage(w, h);
                                    }
                                    else
                                    {
                                        dlg.UpdatePreview();
                                    }

                                    dlg.EncodeSource();

                                    textureNode.AddChild(entry);
                                }
                            }

                            entry._frame = (float) Math.Round(frameCount, 2);
                            frameCount += decoder.GetDelay(i) / 1000.0f * 60.0f;

                            if (textureNode._hasTex)
                            {
                                entry.Texture = name;
                            }

                            if (textureNode._hasPlt)
                            {
                                entry.Palette = name;
                            }

                            progress.Update(progress.CurrentValue + 1);
                        }

                        progress.Finish();
                        prev?.Dispose();
                    }
                }

                p._numFrames = (ushort) (frameCount + 0.5f);
            };

            using (BackgroundWorker b = new BackgroundWorker())
            {
                b.DoWork += new DoWorkEventHandler(work);
                b.RunWorkerCompleted += new RunWorkerCompletedEventHandler(completed);
                b.RunWorkerAsync();
            }
        }

◆ OnCalculateSize()

override int BrawlLib.SSBB.ResourceNodes.BRRESNode.OnCalculateSize ( bool force )

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            int size = BRESHeader.Size;
            _rootSize = 0x20 + Children.Count * 0x10;

            //Get entry count and data start
            _numEntries = 0;
            //Children.Sort(NodeComparer.Instance);
            foreach (BRESGroupNode n in Children)
            {
                //n.Children.Sort(NodeComparer.Instance);
                _rootSize += n.Children.Count * 0x10 + 0x18;
                _numEntries += n.Children.Count;
            }

            size += _rootSize;

            //Get strings and advance entry offset
            _stringTable.Clear();
            foreach (BRESGroupNode n in Children)
            {
                _stringTable.Add(n.Name);
                foreach (BRESEntryNode c in n.Children)
                {
                    size = size.Align(c.DataAlign) + c.CalculateSize(force);
                    c.GetStrings(_stringTable);
                }
            }

            _strOffset = size = size.Align(4);

            size += _stringTable.GetTotalSize();

            return size.Align(0x80);
        }

◆ OnInitialize()

override bool BrawlLib.SSBB.ResourceNodes.BRRESNode.OnInitialize ( )

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            base.OnInitialize();

            return Group->_numEntries > 0;
        }

◆ OnPopulate()

override void BrawlLib.SSBB.ResourceNodes.BRRESNode.OnPopulate ( )

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            ResourceGroup* group = Group;
            for (int i = 0; i < group->_numEntries; i++)
            {
                new BRESGroupNode(new string((sbyte*) group + group->First[i]._stringOffset)).Initialize(this,
                    (VoidPtr) group + group->First[i]._dataOffset, 0);
            }
        }

◆ OnRebuild()

override void BrawlLib.SSBB.ResourceNodes.BRRESNode.OnRebuild	(	VoidPtr	address,
		int	size,
		bool	force
	)

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            BRESHeader* header = (BRESHeader*) address;
            *header = new BRESHeader(size, _numEntries + 1);

            ROOTHeader* rootHeader = header->First;
            *rootHeader = new ROOTHeader(_rootSize, Children.Count);

            ResourceGroup* pMaster = &rootHeader->_master;
            ResourceGroup* rGroup = (ResourceGroup*) pMaster->EndAddress;

            //Write string table
            _stringTable.WriteTable(address + _strOffset);

            VoidPtr dataAddr = (VoidPtr) rootHeader + _rootSize;

            int gIndex = 1;
            foreach (BRESGroupNode g in Children)
            {
                ResourceEntry.Build(pMaster, gIndex++, rGroup, (BRESString*) _stringTable[g.Name]);

                *rGroup = new ResourceGroup(g.Children.Count);
                ResourceEntry* nEntry = rGroup->First;

                int rIndex = 1;
                foreach (BRESEntryNode n in g.Children)
                {
                    //Align data
                    dataAddr = ((int) dataAddr).Align(n.DataAlign);

                    ResourceEntry.Build(rGroup, rIndex++, dataAddr, (BRESString*) _stringTable[n.Name]);

                    //Rebuild entry
                    int len = n._calcSize;
                    n.Rebuild(dataAddr, len, force);
                    n.PostProcess(address, dataAddr, len, _stringTable);
                    dataAddr += len;
                }

                g._changed = false;

                //Advance to next group
                rGroup = (ResourceGroup*) rGroup->EndAddress;
            }

            _stringTable.Clear();
        }

◆ ReplaceFromFolder() [1/2]

void BrawlLib.SSBB.ResourceNodes.BRRESNode.ReplaceFromFolder ( string inFolder )

inline

        {
            ReplaceFromFolder(inFolder, ".tex0");
        }

◆ ReplaceFromFolder() [2/2]

void BrawlLib.SSBB.ResourceNodes.BRRESNode.ReplaceFromFolder	(	string	inFolder,
		string	imageExtension
	)

inline

        {
            DirectoryInfo dir = new DirectoryInfo(inFolder);
            FileInfo[] files = dir.GetFiles();
            string ext = "*";
            foreach (BRESGroupNode group in Children)
            {
                if (group.Type == BRESGroupNode.BRESGroupType.Textures)
                {
                    ext = imageExtension;
                }
                else if (group.Type == BRESGroupNode.BRESGroupType.Palettes)
                {
                    ext = ".plt0";
                }
                else if (group.Type == BRESGroupNode.BRESGroupType.Models)
                {
                    ext = ".mdl0";
                }
                else if (group.Type == BRESGroupNode.BRESGroupType.CHR0)
                {
                    ext = ".chr0";
                }
                else if (group.Type == BRESGroupNode.BRESGroupType.CLR0)
                {
                    ext = ".clr0";
                }
                else if (group.Type == BRESGroupNode.BRESGroupType.SRT0)
                {
                    ext = ".srt0";
                }
                else if (group.Type == BRESGroupNode.BRESGroupType.SHP0)
                {
                    ext = ".shp0";
                }
                else if (group.Type == BRESGroupNode.BRESGroupType.PAT0)
                {
                    ext = ".pat0";
                }
                else if (group.Type == BRESGroupNode.BRESGroupType.VIS0)
                {
                    ext = ".vis0";
                }
                else if (group.Type == BRESGroupNode.BRESGroupType.SCN0)
                {
                    ext = ".scn0";
                }

                foreach (BRESEntryNode entry in group.Children)
                {
                    //Find file name for entry
                    foreach (FileInfo info in files)
                    {
                        if (info.Extension.Equals(ext, StringComparison.OrdinalIgnoreCase) &&
                            info.Name.Equals(entry.Name + ext, StringComparison.OrdinalIgnoreCase))
                        {
                            entry.Replace(info.FullName);
                            break;
                        }
                    }
                }
            }
        }

Property Documentation

◆ AllowedChildTypes

override Type [] BrawlLib.SSBB.ResourceNodes.BRRESNode.AllowedChildTypes

get

◆ ImageCount

int BrawlLib.SSBB.ResourceNodes.BRRESNode.ImageCount

get

Implements BrawlLib.Imaging.IImageSource.

◆ NumFacepoints

int BrawlLib.SSBB.ResourceNodes.BRRESNode.NumFacepoints

get

        {
            get
            {
                if (Properties.Settings.Default.CompatibilityMode)
                {
                    return -1;
                }

                //Populate();
                if (GetFolder<MDL0Node>() == null)
                {
                    return 0;
                }

                int count = 0;
                foreach (MDL0Node m in GetFolder<MDL0Node>().Children)
                {
                    count += m.NumFacepoints;
                }

                return count;
            }
        }

◆ NumModels

int BrawlLib.SSBB.ResourceNodes.BRRESNode.NumModels

get

        {
            get
            {
                if (Properties.Settings.Default.CompatibilityMode)
                {
                    return -1;
                }

                //Populate();
                if (GetFolder<MDL0Node>() == null)
                {
                    return 0;
                }

                int count = 0;
                foreach (MDL0Node m in GetFolder<MDL0Node>().Children)
                {
                    count += 1;
                }

                return count;
            }
        }

◆ NumNodes

int BrawlLib.SSBB.ResourceNodes.BRRESNode.NumNodes

get

        {
            get
            {
                if (Properties.Settings.Default.CompatibilityMode)
                {
                    return -1;
                }

                //Populate();
                if (GetFolder<MDL0Node>() == null)
                {
                    return 0;
                }

                int count = 0;
                foreach (MDL0Node m in GetFolder<MDL0Node>().Children)
                {
                    count += m.NumNodes;
                }

                return count;
            }
        }

◆ NumTriangles

int BrawlLib.SSBB.ResourceNodes.BRRESNode.NumTriangles

get

        {
            get
            {
                if (Properties.Settings.Default.CompatibilityMode)
                {
                    return -1;
                }

                //Populate();
                if (GetFolder<MDL0Node>() == null)
                {
                    return 0;
                }

                int count = 0;
                foreach (MDL0Node m in GetFolder<MDL0Node>().Children)
                {
                    count += m.NumTriangles;
                }

                return count;
            }
        }

◆ NumVertices

int BrawlLib.SSBB.ResourceNodes.BRRESNode.NumVertices

get

        {
            get
            {
                if (Properties.Settings.Default.CompatibilityMode)
                {
                    return -1;
                }

                //Populate();
                if (GetFolder<MDL0Node>() == null)
                {
                    return 0;
                }

                int count = 0;
                foreach (MDL0Node m in GetFolder<MDL0Node>().Children)
                {
                    count += m.NumVertices;
                }

                return count;
            }
        }

◆ ResourceFileType

override ResourceType BrawlLib.SSBB.ResourceNodes.BRRESNode.ResourceFileType

get

The documentation for this class was generated from the following file:

BrawlLib/SSBB/ResourceNodes/Archives/BRRESNode.cs

Public Member Functions

Properties

Additional Inherited Members

Member Function Documentation

◆ CreateResource< T >()

◆ ExportToFolder() [1/3]

◆ ExportToFolder() [2/3]

◆ ExportToFolder() [3/3]

◆ GetFolder< T >()

◆ GetImage()

◆ GetOrCreateFolder< T >()

◆ HasFolder< T >()

◆ ImportFolder()

◆ ImportGIF()

◆ OnCalculateSize()

◆ OnInitialize()

◆ OnPopulate()

◆ OnRebuild()

◆ ReplaceFromFolder() [1/2]

◆ ReplaceFromFolder() [2/2]

Property Documentation

◆ AllowedChildTypes

◆ ImageCount

◆ NumFacepoints

◆ NumModels

◆ NumNodes

◆ NumTriangles

◆ NumVertices

◆ ResourceFileType
