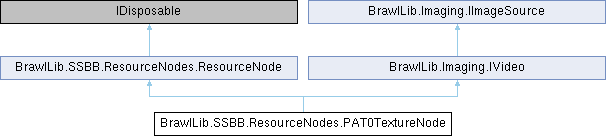

Inheritance diagram for BrawlLib.SSBB.ResourceNodes.PAT0TextureNode:

Public Member Functions
void	CheckNext ()

void	CheckPrev ()

PAT0TextureEntryNode	GetPrevious (float index)
	Gets the last applied texture entry before or at the index. More...

PAT0TextureEntryNode	GetEntry (float index)
	Gets the texture entry at the index, if there is one. More...

string	GetTexture (float index, out bool kf)
	Gets the applied texture at the index and outputs if the value is a keyframe. More...

string	GetPalette (float index, out bool kf)
	Gets the applied palette at the index and outputs if the value is a keyframe. More...

	PAT0TextureNode (PAT0Flags flags, int index)

override bool	OnInitialize ()

override void	OnPopulate ()

override int	OnCalculateSize (bool force)

override void	OnRebuild (VoidPtr address, int length, bool force)

PAT0TextureEntryNode	CreateEntry ()

override void	SortChildren ()
	Sorts the order of texture entries by their frame index. More...

int	GetImageIndexAtFrame (int frame)

Bitmap	GetImage (int index)

Public Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
void	OnRenamed ()

List< ResourceNode >	GetChildrenRecursive ()
	Used primarily to get bone lists. Kept for all resource nodes for utility. More...

virtual void	SignalPropertyChange ()

virtual void	Dispose ()

void	SelectChildAtIndex (int index)

void	UpdateProperties ()

void	UpdateCurrentControl ()

virtual bool	MoveUp ()

virtual bool	MoveDown ()

virtual void	OnMoved ()

virtual void	DoMoveDown ()

virtual void	DoMoveDown (bool select)

virtual void	DoMoveUp ()

virtual void	DoMoveUp (bool select)

virtual bool	AddUp ()

virtual bool	AddDown ()

virtual bool	ToParent ()

void	Populate (int levels=-1)

virtual void	OnPopulate ()

void	Initialize (ResourceNode parent, FileMap source)

void	Initialize (ResourceNode parent, VoidPtr address, int length)

void	Initialize (ResourceNode parent, DataSource origSource)

virtual void	Initialize (ResourceNode parent, DataSource origSource, DataSource uncompSource)

virtual bool	OnInitialize ()

virtual void	Restore ()

virtual void	Remove ()

virtual void	RemoveChild (ResourceNode child)

virtual void	AddChild (ResourceNode child)

virtual void	AddChild (ResourceNode child, bool change)

virtual void	InsertChild (ResourceNode child, int index)

virtual void	InsertChild (ResourceNode child, bool change, int index)

void	SetSizeInternal (int size)

virtual void	Replace (string fileName)

virtual void	Replace (ResourceNode node)

virtual void	Replace (string fileName, FileMapProtect prot, FileOptions options)

virtual void	ReplaceRaw (VoidPtr address, int length)

virtual void	ReplaceRaw (FileMap map)

virtual void	Export (string outPath)

void	Export (FileStream outStream)

virtual void	ExportUncompressed (string outPath)

void	ExportUncompressed (FileStream outStream)

virtual void	Rebuild ()

virtual void	Rebuild (bool force)

virtual void	Rebuild (VoidPtr address, int length, bool force)

virtual void	OnRebuild (VoidPtr address, int length, bool force)

virtual int	CalculateSize (bool force)

virtual int	OnCalculateSize (bool force)

void	Merge ()

void	Merge (bool forceBuild)

ResourceNode	FindChildByType (string path, bool searchChildren, params ResourceType[] types)

ResourceNode	FindChildByType (string path, bool searchChildren, StringComparison compare, params ResourceType[] types)

ResourceNode	FindChild (string path)

ResourceNode	FindChild (string path, bool searchChildren)

ResourceNode	FindChild (string path, StringComparison compare)

ResourceNode	FindChild (string path, bool searchChildren, StringComparison compare)

ResourceNode[]	FindChildrenByClassType (string path, Type type)

ResourceNode[]	FindChildrenByType (string path, ResourceType type)

ResourceNode[]	FindChildrenByTypeInGroup (string path, ResourceType type, byte group)

ResourceNode[]	FindChildrenByName (string name)

unsafe string	FindName (string name)

ResourceNode	FindEmbeddedIndex (int index)

virtual unsafe byte[]	MD5 ()
	Find the MD5 checksum of this node's data. If this node doesn't have any data (BRESGroupNode, for example), this method will return null. More...

string	MD5Str ()
	Get the result of the MD5() function as a string of hexadecimal digits. If MD5() returns null, this method will return an empty string. More...

ResourceNode	PrevSibling ()

ResourceNode	NextSibling ()

override string	ToString ()

virtual void	SortChildren ()

int	GetImageIndexAtFrame (int frame)

Bitmap	GetImage (int index)

Public Attributes
PAT0Flags	_texFlags

int	_textureIndex

int	textureCount

ushort	_texNameIndex

ushort	_pltNameIndex

bool	_hasPlt

bool	_hasTex

float	_frameScale

bool	_rebuild = true

Public Attributes inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
Form	_mainForm

string	_name

string	_origPath

ResourceNode	_parent

List< ResourceNode >	_children = new List<ResourceNode>()

int	_calcSize

EventHandler	UpdateControl

MoveEventHandler	MovedDown

ResourceEventHandler	Renamed

ResourceEventHandler	PropertyChanged

ResourceEventHandler	Replaced

ResourceEventHandler	Restored

ResourceChildEventHandler	ChildRemoved

bool	_isPopulating

bool	_replaced

Properties
override ResourceType	ResourceFileType `[get]`

override Type[]	AllowedChildTypes `[get]`

bool	HasTexture `[get, set]`

bool	HasPalette `[get, set]`

int	TextureIndex `[get, set]`

uint	NumFrames `[get]`

bool	Loop `[get]`

float	FrameRate `[get]`

IAudioStream	Audio `[get]`

uint	Frequency `[get]`

int	ImageCount `[get]`

Properties inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
string	FilePath `[get]`

string	FileName `[get]`

string	DirectoryName `[get]`

ResourceNode	RootNode `[get]`

DataSource	OriginalSource `[get]`

DataSource	UncompressedSource `[get]`

DataSource	WorkingSource `[get]`

DataSource	WorkingUncompressed `[get]`

virtual bool	HasChildren `[get]`

virtual ResourceType	ResourceFileType `[get]`

string	NodeType `[get]`

virtual string	TreePathAbsolute `[get]`

virtual string	TreePath `[get]`

virtual int	Level `[get]`

virtual int	MaxNameLength `[get]`

virtual bool	AllowDuplicateNames `[get]`

virtual bool	AllowNullNames `[get]`

virtual string	Name `[get, set]`

ResourceNode	Parent `[get, set]`

List< ResourceNode >	Children `[get]`

int	Index `[get]`

int	HexIndex `[get]`

bool	IsCompressed `[get]`

bool	HasChanged `[get, set]`

bool	IsBranch `[get]`

bool	HasMerged `[get]`

virtual bool	AllowSaving `[get, set]`

virtual bool	IsDirty `[get, set]`

virtual uint	UncompressedSize `[get]`

virtual Type[]	AllowedChildTypes `[get]`

virtual string	Compression `[get, set]`

virtual bool	RetainChildrenOnReplace `[get]`

virtual bool	supportsCompression `[get]`

static MD5CryptoServiceProvider	MD5Provider `[get]`

Properties inherited from BrawlLib.Imaging.IVideo
bool	Loop `[get]`

uint	NumFrames `[get]`

float	FrameRate `[get]`

IAudioStream	Audio `[get]`

uint	Frequency `[get]`

Properties inherited from BrawlLib.Imaging.IImageSource
int	ImageCount `[get]`

Additional Inherited Members
Static Public Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
static ResourceNode[]	FindAllSubNodes (ResourceNode root)

static ResourceNode	FindNode (ResourceNode root, string path, bool searchChildren, StringComparison compare)

Protected Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
void	ForceReplacedEvent ()

virtual void	MergeInternal ()

Events inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
SelectEventHandler	SelectChild

EventHandler	UpdateProps

MoveEventHandler	MovedUp

ResourceEventHandler	Disposing

ResourceChildEventHandler	ChildAdded

ResourceChildInsertEventHandler	ChildInserted

Constructor & Destructor Documentation

◆ PAT0TextureNode()

BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.PAT0TextureNode	(	PAT0Flags	flags,
		int	index
	)

inline

        {
            _texFlags = flags;
            _hasTex = _texFlags.HasFlag(PAT0Flags.HasTexture);
            _hasPlt = _texFlags.HasFlag(PAT0Flags.HasPalette);
            _textureIndex = index;
            _name = "Texture" + _textureIndex;
        }

Member Function Documentation

◆ CheckNext()

void BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.CheckNext ( )

inline

        {
            if (Index == Parent.Children.Count - 1)
            {
                return;
            }

            int index = Index;
            if (_textureIndex > ((PAT0TextureNode) Parent.Children[Index + 1])._textureIndex)
            {
                DoMoveDown();
                if (index != Index)
                {
                    CheckNext();
                }
            }
        }

◆ CheckPrev()

void BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.CheckPrev ( )

inline

        {
            if (Index == 0)
            {
                return;
            }

            int index = Index;
            if (_textureIndex < ((PAT0TextureNode) Parent.Children[Index - 1])._textureIndex)
            {
                DoMoveUp();
                if (index != Index)
                {
                    CheckPrev();
                }
            }
        }

◆ CreateEntry()

PAT0TextureEntryNode BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.CreateEntry ( )

inline

        {
            float value = Children.Count > 0 ? ((PAT0TextureEntryNode) Children[Children.Count - 1])._frame + 1 : 0;
            PAT0TextureEntryNode node = new PAT0TextureEntryNode {_frame = value};
            AddChild(node);
            node.Texture = "NewTexture";
            return node;
        }

◆ GetEntry()

PAT0TextureEntryNode BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.GetEntry ( float index )

inline

Gets the texture entry at the index, if there is one.

        {
            PAT0TextureEntryNode prev = null;
            if (Children.Count == 0)
            {
                return null;
            }

            foreach (PAT0TextureEntryNode next in Children)
            {
                if (next.Index == 0)
                {
                    prev = next;
                    continue;
                }

                if (prev._frame <= index && next._frame > index)
                {
                    break;
                }

                prev = next;
            }

            if ((int) prev._frame == index)
            {
                return prev;
            }

            return null;
        }

◆ GetImage()

Bitmap BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.GetImage ( int index )

inline

Implements BrawlLib.Imaging.IImageSource.

        {
            if (index < 0 || index >= Children.Count)
            {
                return null;
            }

            return ((PAT0TextureEntryNode) Children[index]).GetImage(0);
        }

◆ GetImageIndexAtFrame()

int BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.GetImageIndexAtFrame ( int frame )

inline

Implements BrawlLib.Imaging.IVideo.

        {
            PAT0TextureEntryNode node = GetPrevious(frame);
            if (node != null)
            {
                return node.Index;
            }

            return 0;
        }

◆ GetPalette()

string BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.GetPalette	(	float	index,
		out bool	kf
	)

inline

Gets the applied palette at the index and outputs if the value is a keyframe.

        {
            PAT0TextureEntryNode prev = null;
            if (Children.Count == 0)
            {
                kf = false;
                return null;
            }

            foreach (PAT0TextureEntryNode next in Children)
            {
                if (next.Index == 0)
                {
                    prev = next;
                    continue;
                }

                if (prev._frame <= index && next._frame > index)
                {
                    break;
                }

                prev = next;
            }

            if ((int) prev._frame == index)
            {
                kf = true;
            }
            else
            {
                kf = false;
            }

            return prev.Palette;
        }

◆ GetPrevious()

PAT0TextureEntryNode BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.GetPrevious ( float index )

inline

Gets the last applied texture entry before or at the index.

        {
            PAT0TextureEntryNode prev = null;
            foreach (PAT0TextureEntryNode next in Children)
            {
                if (next.Index == 0)
                {
                    prev = next;
                    continue;
                }

                if (prev._frame <= index && next._frame > index)
                {
                    break;
                }

                prev = next;
            }

            return prev;
        }

◆ GetTexture()

string BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.GetTexture	(	float	index,
		out bool	kf
	)

inline

Gets the applied texture at the index and outputs if the value is a keyframe.

        {
            PAT0TextureEntryNode prev = null;
            if (Children.Count == 0)
            {
                kf = false;
                return null;
            }

            foreach (PAT0TextureEntryNode next in Children)
            {
                if (next.Index == 0)
                {
                    prev = next;
                    continue;
                }

                if (prev._frame <= index && next._frame > index)
                {
                    break;
                }

                prev = next;
            }

            if ((int) prev._frame == index)
            {
                kf = true;
            }
            else
            {
                kf = false;
            }

            return prev.Texture;
        }

◆ OnCalculateSize()

override int BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.OnCalculateSize ( bool force )

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            return Children.Count > 1 ? PAT0TextureTable.Size + PAT0Texture.Size * Children.Count : 0;
        }

◆ OnInitialize()

override bool BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.OnInitialize ( )

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            _frameScale = Header->_frameScale;
            textureCount = Header->_textureCount;

            return textureCount > 0;
        }

◆ OnPopulate()

override void BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.OnPopulate ( )

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            if (!_texFlags.HasFlag(PAT0Flags.FixedTexture))
            {
                PAT0Texture* current = Header->Textures;
                for (int i = 0; i < textureCount; i++, current++)
                {
                    new PAT0TextureEntryNode().Initialize(this, new DataSource(current, PAT0Texture.Size));
                }
            }
        }

◆ OnRebuild()

override void BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.OnRebuild	(	VoidPtr	address,
		int	length,
		bool	force
	)

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            if (Children.Count > 1)
            {
                PAT0TextureTable* table = (PAT0TextureTable*) address;
                table->_textureCount = (short) Children.Count;
                float f = (Children[Children.Count - 1] as PAT0TextureEntryNode)._frame;
                table->_frameScale = f == 0 ? 0 : 1.0f / f;
                table->_pad = 0;

                PAT0Texture* entry = table->Textures;
                foreach (PAT0TextureEntryNode n in Children)
                {
                    n.Rebuild(entry++, PAT0Texture.Size, true);
                }
            }
        }

◆ SortChildren()

override void BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.SortChildren ( )

inlinevirtual

Sorts the order of texture entries by their frame index.

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            Top:
            for (int i = 0; i < Children.Count; i++)
            {
                PAT0TextureEntryNode t = Children[i] as PAT0TextureEntryNode;
                int x = t.Index;
                t.CheckNext();
                t.CheckPrev();
                if (t.Index != x)
                {
                    goto Top;
                }
            }
        }

Member Data Documentation

◆ _frameScale

float BrawlLib.SSBB.ResourceNodes.PAT0TextureNode._frameScale

◆ _hasPlt

bool BrawlLib.SSBB.ResourceNodes.PAT0TextureNode._hasPlt

◆ _hasTex

bool BrawlLib.SSBB.ResourceNodes.PAT0TextureNode._hasTex

◆ _pltNameIndex

ushort BrawlLib.SSBB.ResourceNodes.PAT0TextureNode._pltNameIndex

◆ _rebuild

bool BrawlLib.SSBB.ResourceNodes.PAT0TextureNode._rebuild = true

◆ _texFlags

PAT0Flags BrawlLib.SSBB.ResourceNodes.PAT0TextureNode._texFlags

◆ _texNameIndex

ushort BrawlLib.SSBB.ResourceNodes.PAT0TextureNode._texNameIndex

◆ _textureIndex

int BrawlLib.SSBB.ResourceNodes.PAT0TextureNode._textureIndex

◆ textureCount

int BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.textureCount

Property Documentation

◆ AllowedChildTypes

override Type [] BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.AllowedChildTypes

get

◆ Audio

IAudioStream BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.Audio

get

Implements BrawlLib.Imaging.IVideo.

◆ FrameRate

float BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.FrameRate

get

Implements BrawlLib.Imaging.IVideo.

◆ Frequency

uint BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.Frequency

get

Implements BrawlLib.Imaging.IVideo.

◆ HasPalette

bool BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.HasPalette

getset

        {
            get => _hasPlt;
            set
            {
                _hasPlt = value;
                SignalPropertyChange();
            }
        }

◆ HasTexture

bool BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.HasTexture

getset

        {
            get => _hasTex;
            set
            {
                _hasTex = value;
                SignalPropertyChange();
            }
        }

◆ ImageCount

int BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.ImageCount

get

Implements BrawlLib.Imaging.IImageSource.

◆ Loop

bool BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.Loop

get

Implements BrawlLib.Imaging.IVideo.

◆ NumFrames

uint BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.NumFrames

get

Implements BrawlLib.Imaging.IVideo.

◆ ResourceFileType

override ResourceType BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.ResourceFileType

get

◆ TextureIndex

int BrawlLib.SSBB.ResourceNodes.PAT0TextureNode.TextureIndex

getset

        {
            get => _textureIndex;
            set
            {
                foreach (PAT0TextureNode t in Parent.Children)
                {
                    if (t.Index != Index && t._textureIndex == (value > 7 ? 7 : value < 0 ? 0 : value))
                    {
                        return;
                    }
                }

                _textureIndex = value > 7 ? 7 : value < 0 ? 0 : value;

                Name = "Texture" + _textureIndex;

                CheckNext();
                CheckPrev();
            }
        }

The documentation for this class was generated from the following file:

BrawlLib/SSBB/ResourceNodes/Animations/PAT0Node.cs

Public Member Functions

Public Attributes

Properties

Additional Inherited Members

Constructor & Destructor Documentation

◆ PAT0TextureNode()

Member Function Documentation

◆ CheckNext()

◆ CheckPrev()

◆ CreateEntry()

◆ GetEntry()

◆ GetImage()

◆ GetImageIndexAtFrame()

◆ GetPalette()

◆ GetPrevious()

◆ GetTexture()

◆ OnCalculateSize()

◆ OnInitialize()

◆ OnPopulate()

◆ OnRebuild()

◆ SortChildren()

Member Data Documentation

◆ _frameScale

◆ _hasPlt

◆ _hasTex

◆ _pltNameIndex

◆ _rebuild

◆ _texFlags

◆ _texNameIndex

◆ _textureIndex

◆ textureCount

Property Documentation

◆ AllowedChildTypes

◆ Audio

◆ FrameRate

◆ Frequency

◆ HasPalette

◆ HasTexture

◆ ImageCount

◆ Loop

◆ NumFrames

◆ ResourceFileType

◆ TextureIndex
