BrawlLib.SSBB.ResourceNodes.PAT0TextureEntryNode Class Reference

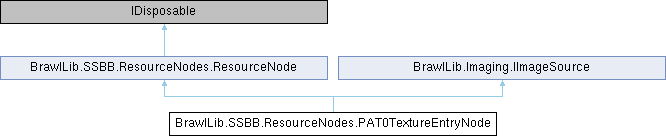

Inheritance diagram for BrawlLib.SSBB.ResourceNodes.PAT0TextureEntryNode:

Public Member Functions
void	CheckNext ()
void	CheckPrev ()
override bool	OnInitialize ()
void	GetStrings ()
override void	OnRebuild (VoidPtr address, int length, bool force)
override int	OnCalculateSize (bool force)
Bitmap	GetImage (int index)
Public Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
void	OnRenamed ()
List< ResourceNode >	GetChildrenRecursive ()
	Used primarily to get bone lists. Kept for all resource nodes for utility. More...
virtual void	SignalPropertyChange ()
virtual void	Dispose ()
void	SelectChildAtIndex (int index)
void	UpdateProperties ()
void	UpdateCurrentControl ()
virtual bool	MoveUp ()
virtual bool	MoveDown ()
virtual void	OnMoved ()
virtual void	DoMoveDown ()
virtual void	DoMoveDown (bool select)
virtual void	DoMoveUp ()
virtual void	DoMoveUp (bool select)
virtual bool	AddUp ()
virtual bool	AddDown ()
virtual bool	ToParent ()
void	Populate (int levels=-1)
virtual void	OnPopulate ()
void	Initialize (ResourceNode parent, FileMap source)
void	Initialize (ResourceNode parent, VoidPtr address, int length)
void	Initialize (ResourceNode parent, DataSource origSource)
virtual void	Initialize (ResourceNode parent, DataSource origSource, DataSource uncompSource)
virtual bool	OnInitialize ()
virtual void	Restore ()
virtual void	Remove ()
virtual void	RemoveChild (ResourceNode child)
virtual void	AddChild (ResourceNode child)
virtual void	AddChild (ResourceNode child, bool change)
virtual void	InsertChild (ResourceNode child, int index)
virtual void	InsertChild (ResourceNode child, bool change, int index)
void	SetSizeInternal (int size)
virtual void	Replace (string fileName)
virtual void	Replace (ResourceNode node)
virtual void	Replace (string fileName, FileMapProtect prot, FileOptions options)
virtual void	ReplaceRaw (VoidPtr address, int length)
virtual void	ReplaceRaw (FileMap map)
virtual void	Export (string outPath)
void	Export (FileStream outStream)
virtual void	ExportUncompressed (string outPath)
void	ExportUncompressed (FileStream outStream)
virtual void	Rebuild ()
virtual void	Rebuild (bool force)
virtual void	Rebuild (VoidPtr address, int length, bool force)
virtual void	OnRebuild (VoidPtr address, int length, bool force)
virtual int	CalculateSize (bool force)
virtual int	OnCalculateSize (bool force)
void	Merge ()
void	Merge (bool forceBuild)
ResourceNode	FindChildByType (string path, bool searchChildren, params ResourceType[] types)
ResourceNode	FindChildByType (string path, bool searchChildren, StringComparison compare, params ResourceType[] types)
ResourceNode	FindChild (string path)
ResourceNode	FindChild (string path, bool searchChildren)
ResourceNode	FindChild (string path, StringComparison compare)
ResourceNode	FindChild (string path, bool searchChildren, StringComparison compare)
ResourceNode[]	FindChildrenByClassType (string path, Type type)
ResourceNode[]	FindChildrenByType (string path, ResourceType type)
ResourceNode[]	FindChildrenByTypeInGroup (string path, ResourceType type, byte group)
ResourceNode[]	FindChildrenByName (string name)
unsafe string	FindName (string name)
ResourceNode	FindEmbeddedIndex (int index)
virtual unsafe byte[]	MD5 ()
	Find the MD5 checksum of this node's data. If this node doesn't have any data (BRESGroupNode, for example), this method will return null. More...
string	MD5Str ()
	Get the result of the MD5() function as a string of hexadecimal digits. If MD5() returns null, this method will return an empty string. More...
ResourceNode	PrevSibling ()
ResourceNode	NextSibling ()
override string	ToString ()
virtual void	SortChildren ()
Bitmap	GetImage (int index)

Public Attributes
float	_frame
ushort	_texFileIndex
ushort	_pltFileIndex
string	_tex
string	_plt
TEX0Node	_textureNode
PLT0Node	_paletteNode
Public Attributes inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
Form	_mainForm
string	_name
string	_origPath
ResourceNode	_parent
List< ResourceNode >	_children = new List<ResourceNode>()
int	_calcSize
EventHandler	UpdateControl
MoveEventHandler	MovedDown
ResourceEventHandler	Renamed
ResourceEventHandler	PropertyChanged
ResourceEventHandler	Replaced
ResourceEventHandler	Restored
ResourceChildEventHandler	ChildRemoved
bool	_isPopulating
bool	_replaced

Properties
override ResourceType	ResourceFileType [get]
override bool	AllowDuplicateNames [get]
float	FrameIndex [get, set]
string	Texture [get, set]
string	Palette [get, set]
override string	Name [get, set]
int	ImageCount [get]
Properties inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
string	FilePath [get]
string	FileName [get]
string	DirectoryName [get]
ResourceNode	RootNode [get]
DataSource	OriginalSource [get]
DataSource	UncompressedSource [get]
DataSource	WorkingSource [get]
DataSource	WorkingUncompressed [get]
virtual bool	HasChildren [get]
virtual ResourceType	ResourceFileType [get]
string	NodeType [get]
virtual string	TreePathAbsolute [get]
virtual string	TreePath [get]
virtual int	Level [get]
virtual int	MaxNameLength [get]
virtual bool	AllowDuplicateNames [get]
virtual bool	AllowNullNames [get]
virtual string	Name [get, set]
ResourceNode	Parent [get, set]
List< ResourceNode >	Children [get]
int	Index [get]
int	HexIndex [get]
bool	IsCompressed [get]
bool	HasChanged [get, set]
bool	IsBranch [get]
bool	HasMerged [get]
virtual bool	AllowSaving [get, set]
virtual bool	IsDirty [get, set]
virtual uint	UncompressedSize [get]
virtual Type[]	AllowedChildTypes [get]
virtual string	Compression [get, set]
virtual bool	RetainChildrenOnReplace [get]
virtual bool	supportsCompression [get]
static MD5CryptoServiceProvider	MD5Provider [get]
Properties inherited from BrawlLib.Imaging.IImageSource
int	ImageCount [get]

Additional Inherited Members
Static Public Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
static ResourceNode[]	FindAllSubNodes (ResourceNode root)
static ResourceNode	FindNode (ResourceNode root, string path, bool searchChildren, StringComparison compare)
Protected Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
void	ForceReplacedEvent ()
virtual void	MergeInternal ()
Events inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
SelectEventHandler	SelectChild
EventHandler	UpdateProps
MoveEventHandler	MovedUp
ResourceEventHandler	Disposing
ResourceChildEventHandler	ChildAdded
ResourceChildInsertEventHandler	ChildInserted

Member Function Documentation

CheckNext()

void BrawlLib.SSBB.ResourceNodes.PAT0TextureEntryNode.CheckNext ( )

inline

        {
            if (Parent == null || Index == Parent.Children.Count - 1)
            {
                return;
            }

            int index = Index;
            if (_frame > ((PAT0TextureEntryNode) Parent.Children[Index + 1])._frame)
            {
                DoMoveDown();
                if (index != Index)
                {
                    CheckNext();
                }
            }
        }

CheckPrev()

void BrawlLib.SSBB.ResourceNodes.PAT0TextureEntryNode.CheckPrev ( )

inline

        {
            if (Parent == null || Index == 0)
            {
                return;
            }

            int index = Index;
            if (_frame < ((PAT0TextureEntryNode) Parent.Children[Index - 1])._frame)
            {
                DoMoveUp();
                if (index != Index)
                {
                    CheckPrev();
                }
            }
        }

GetImage()

Bitmap BrawlLib.SSBB.ResourceNodes.PAT0TextureEntryNode.GetImage ( int  index )

inline

Implements BrawlLib.Imaging.IImageSource.

        {
            if (string.IsNullOrEmpty(_tex))
            {
                return null;
            }

            if (_textureNode == null)
            {
                _textureNode = RootNode.FindChildByType(_tex, true, ResourceType.TEX0) as TEX0Node;
                if (_textureNode == null)
                {
                    return null;
                }
            }

            if (!string.IsNullOrEmpty(_plt) && _paletteNode == null)
            {
                _paletteNode = RootNode.FindChildByType(_plt, true, ResourceType.PLT0) as PLT0Node;
            }

            return _textureNode.GetImage(index, _paletteNode);
        }

GetStrings()

void BrawlLib.SSBB.ResourceNodes.PAT0TextureEntryNode.GetStrings ( )

inline

        {
            if (Parent == null)
            {
                _name = "<null>";
                return;
            }

            PAT0Node node = (PAT0Node) Parent.Parent.Parent;

            if (((PAT0TextureNode) Parent)._hasPlt && _pltFileIndex < node._paletteFiles.Count)
            {
                _plt = node._paletteFiles[_pltFileIndex];
                _paletteNode = null;
            }

            if (((PAT0TextureNode) Parent)._hasTex && _texFileIndex < node._textureFiles.Count)
            {
                _name = _tex = node._textureFiles[_texFileIndex];
                _textureNode = null;
            }

            if (_name == null && _plt != null)
            {
                _name = _plt;
            }

            if (_name == null)
            {
                _name = "<null>";
            }
        }

OnCalculateSize()

override int BrawlLib.SSBB.ResourceNodes.PAT0TextureEntryNode.OnCalculateSize ( bool  force )

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            return PAT0Texture.Size;
        }

OnInitialize()

override bool BrawlLib.SSBB.ResourceNodes.PAT0TextureEntryNode.OnInitialize ( )

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            _frame = Header->_key;
            _texFileIndex = Header->_texFileIndex;
            _pltFileIndex = Header->_pltFileIndex;

            GetStrings();

            return false;
        }

OnRebuild()

override void BrawlLib.SSBB.ResourceNodes.PAT0TextureEntryNode.OnRebuild ( VoidPtr  address, int  length, bool  force  )

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            PAT0Node node = (PAT0Node) Parent.Parent.Parent;

            PAT0Texture* header = (PAT0Texture*) address;

            header->_key = _frame;
            header->_texFileIndex = ((PAT0TextureNode) Parent)._hasTex && !string.IsNullOrEmpty(_tex)
                ? _texFileIndex
                : (ushort) 0;
            header->_pltFileIndex = ((PAT0TextureNode) Parent)._hasPlt && !string.IsNullOrEmpty(_plt)
                ? _pltFileIndex
                : (ushort) 0;
        }

Member Data Documentation

_frame

float BrawlLib.SSBB.ResourceNodes.PAT0TextureEntryNode._frame

_paletteNode

PLT0Node BrawlLib.SSBB.ResourceNodes.PAT0TextureEntryNode._paletteNode

_plt

string BrawlLib.SSBB.ResourceNodes.PAT0TextureEntryNode._plt

_pltFileIndex

ushort BrawlLib.SSBB.ResourceNodes.PAT0TextureEntryNode._pltFileIndex

_tex

string BrawlLib.SSBB.ResourceNodes.PAT0TextureEntryNode._tex

_texFileIndex

ushort BrawlLib.SSBB.ResourceNodes.PAT0TextureEntryNode._texFileIndex

_textureNode

TEX0Node BrawlLib.SSBB.ResourceNodes.PAT0TextureEntryNode._textureNode

Property Documentation

AllowDuplicateNames

override bool BrawlLib.SSBB.ResourceNodes.PAT0TextureEntryNode.AllowDuplicateNames

get

FrameIndex

float BrawlLib.SSBB.ResourceNodes.PAT0TextureEntryNode.FrameIndex

getset

        {
            get => _frame;
            set
            {
                if (Index == 0)
                {
                    if (Index >= Children.Count - 1)
                    {
                        _frame = 0;
                    }
                    else if (value >= ((PAT0TextureEntryNode) Parent.Children[Index + 1])._frame)
                    {
                        ((PAT0TextureEntryNode) Parent.Children[Index + 1])._frame = 0;
                        Parent.Children[Index + 1].SignalPropertyChange();

                        _frame = value;
                        CheckNext();
                    }

                    SignalPropertyChange();
                    return;
                }

                _frame = value;
                CheckPrev();
                CheckNext();

                SignalPropertyChange();
            }
        }

ImageCount

int BrawlLib.SSBB.ResourceNodes.PAT0TextureEntryNode.ImageCount

get

Implements BrawlLib.Imaging.IImageSource.

        {
            get
            {
                if (_textureNode == null)
                {
                    _textureNode = RootNode.FindChildByType(_tex, true, ResourceType.TEX0) as TEX0Node;
                    if (_textureNode == null)
                    {
                        return 0;
                    }
                }

                return _textureNode.ImageCount;
            }
        }

Name

override string BrawlLib.SSBB.ResourceNodes.PAT0TextureEntryNode.Name

getset

        {
            get => base.Name;
            set
            {
                base.Name = value;
                SetTexture(value);
            }
        }

Palette

string BrawlLib.SSBB.ResourceNodes.PAT0TextureEntryNode.Palette

getset

        {
            get => _plt;
            set
            {
                if (Parent == null || !(Parent as PAT0TextureNode)._hasPlt || value == _plt)
                {
                    return;
                }

                _plt = value;
                _paletteNode = null;
                ((PAT0Node) Parent?.Parent?.Parent)?.RegeneratePaletteList();

                SignalPropertyChange();
            }
        }

ResourceFileType

override ResourceType BrawlLib.SSBB.ResourceNodes.PAT0TextureEntryNode.ResourceFileType

get

Texture

string BrawlLib.SSBB.ResourceNodes.PAT0TextureEntryNode.Texture

getset

        {
            get => _tex;
            set
            {
                if (Parent == null || !(Parent as PAT0TextureNode)._hasTex || value == _tex)
                {
                    return;
                }

                if (!string.IsNullOrEmpty(value))
                {
                    Name = value;
                }
                else
                {
                    SetTexture(value);
                }

                SignalPropertyChange();
            }
        }

---

The documentation for this class was generated from the following file:

• BrawlLib/SSBB/ResourceNodes/Animations/PAT0Node.cs
