BrawlLib.SSBB.ResourceNodes.VIS0EntryNode Class Reference

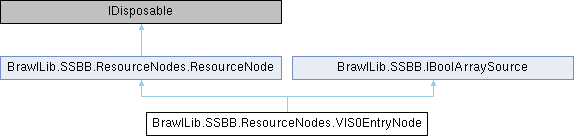

Inheritance diagram for BrawlLib.SSBB.ResourceNodes.VIS0EntryNode:

Public Member Functions
override int	OnCalculateSize (bool force)
override void	OnRebuild (VoidPtr address, int length, bool force)
override bool	OnInitialize ()
bool	GetEntry (int index)
void	SetEntry (int index, bool value)
void	MakeConstant (bool value)
void	MakeAnimated ()
Public Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
void	OnRenamed ()
List< ResourceNode >	GetChildrenRecursive ()
	Used primarily to get bone lists. Kept for all resource nodes for utility. More...
virtual void	SignalPropertyChange ()
virtual void	Dispose ()
void	SelectChildAtIndex (int index)
void	UpdateProperties ()
void	UpdateCurrentControl ()
virtual bool	MoveUp ()
virtual bool	MoveDown ()
virtual void	OnMoved ()
virtual void	DoMoveDown ()
virtual void	DoMoveDown (bool select)
virtual void	DoMoveUp ()
virtual void	DoMoveUp (bool select)
virtual bool	AddUp ()
virtual bool	AddDown ()
virtual bool	ToParent ()
void	Populate (int levels=-1)
virtual void	OnPopulate ()
void	Initialize (ResourceNode parent, FileMap source)
void	Initialize (ResourceNode parent, VoidPtr address, int length)
void	Initialize (ResourceNode parent, DataSource origSource)
virtual void	Initialize (ResourceNode parent, DataSource origSource, DataSource uncompSource)
virtual bool	OnInitialize ()
virtual void	Restore ()
virtual void	Remove ()
virtual void	RemoveChild (ResourceNode child)
virtual void	AddChild (ResourceNode child)
virtual void	AddChild (ResourceNode child, bool change)
virtual void	InsertChild (ResourceNode child, int index)
virtual void	InsertChild (ResourceNode child, bool change, int index)
void	SetSizeInternal (int size)
virtual void	Replace (string fileName)
virtual void	Replace (ResourceNode node)
virtual void	Replace (string fileName, FileMapProtect prot, FileOptions options)
virtual void	ReplaceRaw (VoidPtr address, int length)
virtual void	ReplaceRaw (FileMap map)
virtual void	Export (string outPath)
void	Export (FileStream outStream)
virtual void	ExportUncompressed (string outPath)
void	ExportUncompressed (FileStream outStream)
virtual void	Rebuild ()
virtual void	Rebuild (bool force)
virtual void	Rebuild (VoidPtr address, int length, bool force)
virtual void	OnRebuild (VoidPtr address, int length, bool force)
virtual int	CalculateSize (bool force)
virtual int	OnCalculateSize (bool force)
void	Merge ()
void	Merge (bool forceBuild)
ResourceNode	FindChildByType (string path, bool searchChildren, params ResourceType[] types)
ResourceNode	FindChildByType (string path, bool searchChildren, StringComparison compare, params ResourceType[] types)
ResourceNode	FindChild (string path)
ResourceNode	FindChild (string path, bool searchChildren)
ResourceNode	FindChild (string path, StringComparison compare)
ResourceNode	FindChild (string path, bool searchChildren, StringComparison compare)
ResourceNode[]	FindChildrenByClassType (string path, Type type)
ResourceNode[]	FindChildrenByType (string path, ResourceType type)
ResourceNode[]	FindChildrenByTypeInGroup (string path, ResourceType type, byte group)
ResourceNode[]	FindChildrenByName (string name)
unsafe string	FindName (string name)
ResourceNode	FindEmbeddedIndex (int index)
virtual unsafe byte[]	MD5 ()
	Find the MD5 checksum of this node's data. If this node doesn't have any data (BRESGroupNode, for example), this method will return null. More...
string	MD5Str ()
	Get the result of the MD5() function as a string of hexadecimal digits. If MD5() returns null, this method will return an empty string. More...
ResourceNode	PrevSibling ()
ResourceNode	NextSibling ()
override string	ToString ()
virtual void	SortChildren ()
void	SetEntry (int index, bool value)
bool	GetEntry (int index)
void	MakeAnimated ()
void	MakeConstant (bool value)

Public Attributes
byte[]	_data = new byte[0]
int	_entryCount
VIS0Flags	_flags
Public Attributes inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
Form	_mainForm
string	_name
string	_origPath
ResourceNode	_parent
List< ResourceNode >	_children = new List<ResourceNode>()
int	_calcSize
EventHandler	UpdateControl
MoveEventHandler	MovedDown
ResourceEventHandler	Renamed
ResourceEventHandler	PropertyChanged
ResourceEventHandler	Replaced
ResourceEventHandler	Restored
ResourceChildEventHandler	ChildRemoved
bool	_isPopulating
bool	_replaced

Properties
int	EntryCount [get, set]
bool	Enabled [get, set]
bool	Constant [get, set]
Properties inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
string	FilePath [get]
string	FileName [get]
string	DirectoryName [get]
ResourceNode	RootNode [get]
DataSource	OriginalSource [get]
DataSource	UncompressedSource [get]
DataSource	WorkingSource [get]
DataSource	WorkingUncompressed [get]
virtual bool	HasChildren [get]
virtual ResourceType	ResourceFileType [get]
string	NodeType [get]
virtual string	TreePathAbsolute [get]
virtual string	TreePath [get]
virtual int	Level [get]
virtual int	MaxNameLength [get]
virtual bool	AllowDuplicateNames [get]
virtual bool	AllowNullNames [get]
virtual string	Name [get, set]
ResourceNode	Parent [get, set]
List< ResourceNode >	Children [get]
int	Index [get]
int	HexIndex [get]
bool	IsCompressed [get]
bool	HasChanged [get, set]
bool	IsBranch [get]
bool	HasMerged [get]
virtual bool	AllowSaving [get, set]
virtual bool	IsDirty [get, set]
virtual uint	UncompressedSize [get]
virtual Type[]	AllowedChildTypes [get]
virtual string	Compression [get, set]
virtual bool	RetainChildrenOnReplace [get]
virtual bool	supportsCompression [get]
static MD5CryptoServiceProvider	MD5Provider [get]
Properties inherited from BrawlLib.SSBB.IBoolArraySource
bool	Constant [get, set]
bool	Enabled [get, set]
int	EntryCount [get, set]

Additional Inherited Members
Static Public Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
static ResourceNode[]	FindAllSubNodes (ResourceNode root)
static ResourceNode	FindNode (ResourceNode root, string path, bool searchChildren, StringComparison compare)
Protected Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
void	ForceReplacedEvent ()
virtual void	MergeInternal ()
Events inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
SelectEventHandler	SelectChild
EventHandler	UpdateProps
MoveEventHandler	MovedUp
ResourceEventHandler	Disposing
ResourceChildEventHandler	ChildAdded
ResourceChildInsertEventHandler	ChildInserted

Member Function Documentation

GetEntry()

bool BrawlLib.SSBB.ResourceNodes.VIS0EntryNode.GetEntry ( int  index )

inline

Implements BrawlLib.SSBB.IBoolArraySource.

        {
            int i = index >> 3;
            if (i >= _data.Length)
            {
                return false;
            }

            int bit = 1 << (7 - (index & 7));
            return (_data[i] & bit) != 0;
        }

MakeAnimated()

void BrawlLib.SSBB.ResourceNodes.VIS0EntryNode.MakeAnimated ( )

inline

Implements BrawlLib.SSBB.IBoolArraySource.

        {
            _flags = VIS0Flags.None;
            _entryCount = -1;
            EntryCount = ((VIS0Node) _parent).FrameCount;

            //bool e = Enabled;
            //for (int i = 0; i < _entryCount; i++)
            //    SetEntry(i, e);

            SignalPropertyChange();
        }

MakeConstant()

void BrawlLib.SSBB.ResourceNodes.VIS0EntryNode.MakeConstant ( bool  value )

inline

Implements BrawlLib.SSBB.IBoolArraySource.

        {
            _flags = VIS0Flags.Constant | (value ? VIS0Flags.Enabled : 0);
            _entryCount = 0;
            SignalPropertyChange();
        }

OnCalculateSize()

override int BrawlLib.SSBB.ResourceNodes.VIS0EntryNode.OnCalculateSize ( bool  force )

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            if (_entryCount == 0)
            {
                return 8;
            }

            return _entryCount.Align(32) / 8 + 8;
        }

OnInitialize()

override bool BrawlLib.SSBB.ResourceNodes.VIS0EntryNode.OnInitialize ( )

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            if (_name == null && Header->_stringOffset != 0)
            {
                _name = Header->ResourceString;
            }

            _flags = Header->Flags;

            if ((_flags & VIS0Flags.Constant) == 0)
            {
                _entryCount = ((VIS0Node) _parent).FrameCount;
                int numBytes = _entryCount.Align(32) / 8;

                SetSizeInternal(numBytes + 8);

                _data = new byte[numBytes];
                Marshal.Copy(Header->Data, _data, 0, numBytes);
            }
            else
            {
                _entryCount = 0;
                _data = new byte[0];
                SetSizeInternal(8);
            }

            return false;
        }

OnRebuild()

override void BrawlLib.SSBB.ResourceNodes.VIS0EntryNode.OnRebuild ( VoidPtr  address, int  length, bool  force  )

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            VIS0Entry* header = (VIS0Entry*) address;
            *header = new VIS0Entry(_flags);

            if (_entryCount != 0)
            {
                Marshal.Copy(_data, 0, header->Data, length - 8);
            }
        }

SetEntry()

void BrawlLib.SSBB.ResourceNodes.VIS0EntryNode.SetEntry ( int  index, bool  value  )

inline

Implements BrawlLib.SSBB.IBoolArraySource.

        {
            int i = index >> 3;
            if (i >= _data.Length)
            {
                return;
            }

            int bit = 1 << (7 - (index & 7));
            int mask = ~bit;
            _data[i] = (byte) ((_data[i] & mask) | (value ? bit : 0));
            SignalPropertyChange();
        }

Member Data Documentation

_data

byte [] BrawlLib.SSBB.ResourceNodes.VIS0EntryNode._data = new byte[0]

_entryCount

int BrawlLib.SSBB.ResourceNodes.VIS0EntryNode._entryCount

_flags

VIS0Flags BrawlLib.SSBB.ResourceNodes.VIS0EntryNode._flags

Property Documentation

Constant

bool BrawlLib.SSBB.ResourceNodes.VIS0EntryNode.Constant

getset

Implements BrawlLib.SSBB.IBoolArraySource.

        {
            get => _flags.HasFlag(VIS0Flags.Constant);
            set
            {
                if (value)
                {
                    MakeConstant(Enabled);
                }
                else
                {
                    MakeAnimated();
                }

                SignalPropertyChange();
                UpdateCurrentControl();
            }
        }

Enabled

bool BrawlLib.SSBB.ResourceNodes.VIS0EntryNode.Enabled

getset

Implements BrawlLib.SSBB.IBoolArraySource.

        {
            get => _flags.HasFlag(VIS0Flags.Enabled);
            set
            {
                if (value)
                {
                    _flags |= VIS0Flags.Enabled;
                }
                else
                {
                    _flags &= ~VIS0Flags.Enabled;
                }

                SignalPropertyChange();
            }
        }

EntryCount

int BrawlLib.SSBB.ResourceNodes.VIS0EntryNode.EntryCount

getset

Implements BrawlLib.SSBB.IBoolArraySource.

        {
            get => _entryCount;
            set
            {
                if (_entryCount == 0)
                {
                    return;
                }

                _entryCount = value;
                int len = value.Align(32) / 8;

                if (_data.Length < len)
                {
                    byte[] newArr = new byte[len];
                    Array.Copy(_data, newArr, _data.Length);
                    _data = newArr;
                }

                SignalPropertyChange();
            }
        }

---

The documentation for this class was generated from the following file:

• BrawlLib/SSBB/ResourceNodes/Animations/VIS0Node.cs
