BrawlLib.SSBB.ResourceNodes.SRT0TextureNode Class Reference

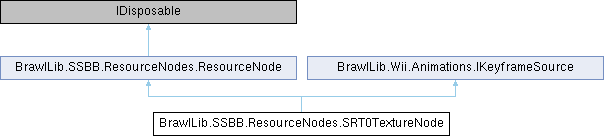

Inheritance diagram for BrawlLib.SSBB.ResourceNodes.SRT0TextureNode:

Public Member Functions
	SRT0TextureNode (int index, bool indirect)
void	CheckNext ()
void	CheckPrev ()
override bool	OnInitialize ()
override int	OnCalculateSize (bool force)
override void	OnRebuild (VoidPtr address, int length, bool force)
override void	Export (string outPath)
float	GetFrameValue (int arrayIndex, float index)
KeyframeEntry	GetKeyframe (int arrayIndex, int index)
KeyframeEntry	SetKeyframe (int arrayIndex, int index, float value)
void	SetKeyframe (int index, SRTAnimationFrame frame)
void	SetKeyframeOnlyTrans (int index, SRTAnimationFrame frame)
void	SetKeyframeOnlyRot (int index, SRTAnimationFrame frame)
void	SetKeyframeOnlyScale (int index, SRTAnimationFrame frame)
void	SetKeyframeOnlyTrans (int index, Vector2 trans)
void	SetKeyframeOnlyRot (int index, float rot)
void	SetKeyframeOnlyScale (int index, Vector2 scale)
void	RemoveKeyframe (int arrayIndex, int index)
void	RemoveKeyframe (int index)
void	RemoveKeyframeOnlyTrans (int index)
void	RemoveKeyframeOnlyRot (int index)
void	RemoveKeyframeOnlyScale (int index)
SRTAnimationFrame	GetAnimFrame (int index)
Public Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
void	OnRenamed ()
List< ResourceNode >	GetChildrenRecursive ()
	Used primarily to get bone lists. Kept for all resource nodes for utility. More...
virtual void	SignalPropertyChange ()
virtual void	Dispose ()
void	SelectChildAtIndex (int index)
void	UpdateProperties ()
void	UpdateCurrentControl ()
virtual bool	MoveUp ()
virtual bool	MoveDown ()
virtual void	OnMoved ()
virtual void	DoMoveDown ()
virtual void	DoMoveDown (bool select)
virtual void	DoMoveUp ()
virtual void	DoMoveUp (bool select)
virtual bool	AddUp ()
virtual bool	AddDown ()
virtual bool	ToParent ()
void	Populate (int levels=-1)
virtual void	OnPopulate ()
void	Initialize (ResourceNode parent, FileMap source)
void	Initialize (ResourceNode parent, VoidPtr address, int length)
void	Initialize (ResourceNode parent, DataSource origSource)
virtual void	Initialize (ResourceNode parent, DataSource origSource, DataSource uncompSource)
virtual bool	OnInitialize ()
virtual void	Restore ()
virtual void	Remove ()
virtual void	RemoveChild (ResourceNode child)
virtual void	AddChild (ResourceNode child)
virtual void	AddChild (ResourceNode child, bool change)
virtual void	InsertChild (ResourceNode child, int index)
virtual void	InsertChild (ResourceNode child, bool change, int index)
void	SetSizeInternal (int size)
virtual void	Replace (string fileName)
virtual void	Replace (ResourceNode node)
virtual void	Replace (string fileName, FileMapProtect prot, FileOptions options)
virtual void	ReplaceRaw (VoidPtr address, int length)
virtual void	ReplaceRaw (FileMap map)
virtual void	Export (string outPath)
void	Export (FileStream outStream)
virtual void	ExportUncompressed (string outPath)
void	ExportUncompressed (FileStream outStream)
virtual void	Rebuild ()
virtual void	Rebuild (bool force)
virtual void	Rebuild (VoidPtr address, int length, bool force)
virtual void	OnRebuild (VoidPtr address, int length, bool force)
virtual int	CalculateSize (bool force)
virtual int	OnCalculateSize (bool force)
void	Merge ()
void	Merge (bool forceBuild)
ResourceNode	FindChildByType (string path, bool searchChildren, params ResourceType[] types)
ResourceNode	FindChildByType (string path, bool searchChildren, StringComparison compare, params ResourceType[] types)
ResourceNode	FindChild (string path)
ResourceNode	FindChild (string path, bool searchChildren)
ResourceNode	FindChild (string path, StringComparison compare)
ResourceNode	FindChild (string path, bool searchChildren, StringComparison compare)
ResourceNode[]	FindChildrenByClassType (string path, Type type)
ResourceNode[]	FindChildrenByType (string path, ResourceType type)
ResourceNode[]	FindChildrenByTypeInGroup (string path, ResourceType type, byte group)
ResourceNode[]	FindChildrenByName (string name)
unsafe string	FindName (string name)
ResourceNode	FindEmbeddedIndex (int index)
virtual unsafe byte[]	MD5 ()
	Find the MD5 checksum of this node's data. If this node doesn't have any data (BRESGroupNode, for example), this method will return null. More...
string	MD5Str ()
	Get the result of the MD5() function as a string of hexadecimal digits. If MD5() returns null, this method will return an empty string. More...
ResourceNode	PrevSibling ()
ResourceNode	NextSibling ()
override string	ToString ()
virtual void	SortChildren ()

Public Attributes
bool	_indirect
int	_textureIndex
Public Attributes inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
Form	_mainForm
string	_name
string	_origPath
ResourceNode	_parent
List< ResourceNode >	_children = new List<ResourceNode>()
int	_calcSize
EventHandler	UpdateControl
MoveEventHandler	MovedDown
ResourceEventHandler	Renamed
ResourceEventHandler	PropertyChanged
ResourceEventHandler	Replaced
ResourceEventHandler	Restored
ResourceChildEventHandler	ChildRemoved
bool	_isPopulating
bool	_replaced

Static Public Attributes
static bool	_generateTangents = true

Properties
override ResourceType	ResourceFileType [get]
bool	Indirect [get, set]
int	TextureIndex [get, set]
int	FrameCount [get]
KeyframeCollection	Keyframes [get]
KeyframeArray[]	KeyArrays [get]
Properties inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
string	FilePath [get]
string	FileName [get]
string	DirectoryName [get]
ResourceNode	RootNode [get]
DataSource	OriginalSource [get]
DataSource	UncompressedSource [get]
DataSource	WorkingSource [get]
DataSource	WorkingUncompressed [get]
virtual bool	HasChildren [get]
virtual ResourceType	ResourceFileType [get]
string	NodeType [get]
virtual string	TreePathAbsolute [get]
virtual string	TreePath [get]
virtual int	Level [get]
virtual int	MaxNameLength [get]
virtual bool	AllowDuplicateNames [get]
virtual bool	AllowNullNames [get]
virtual string	Name [get, set]
ResourceNode	Parent [get, set]
List< ResourceNode >	Children [get]
int	Index [get]
int	HexIndex [get]
bool	IsCompressed [get]
bool	HasChanged [get, set]
bool	IsBranch [get]
bool	HasMerged [get]
virtual bool	AllowSaving [get, set]
virtual bool	IsDirty [get, set]
virtual uint	UncompressedSize [get]
virtual Type[]	AllowedChildTypes [get]
virtual string	Compression [get, set]
virtual bool	RetainChildrenOnReplace [get]
virtual bool	supportsCompression [get]
static MD5CryptoServiceProvider	MD5Provider [get]
Properties inherited from BrawlLib.Wii.Animations.IKeyframeSource
int	FrameCount [get]
KeyframeArray[]	KeyArrays [get]

Additional Inherited Members
Static Public Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
static ResourceNode[]	FindAllSubNodes (ResourceNode root)
static ResourceNode	FindNode (ResourceNode root, string path, bool searchChildren, StringComparison compare)
Protected Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
void	ForceReplacedEvent ()
virtual void	MergeInternal ()
Events inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
SelectEventHandler	SelectChild
EventHandler	UpdateProps
MoveEventHandler	MovedUp
ResourceEventHandler	Disposing
ResourceChildEventHandler	ChildAdded
ResourceChildInsertEventHandler	ChildInserted

Constructor & Destructor Documentation

SRT0TextureNode()

BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.SRT0TextureNode ( int  index, bool  indirect  )

inline

        {
            _textureIndex = index;
            _name = (indirect ? "Ind" : "") + "Texture" + index;
            _indirect = indirect;
        }

Member Function Documentation

CheckNext()

void BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.CheckNext ( )

inline

        {
            if (Index == Parent.Children.Count - 1)
            {
                return;
            }

            int index = Index;
            if (_indirect && ((SRT0TextureNode) Parent.Children[Index + 1])._indirect == false ||
                _textureIndex > ((SRT0TextureNode) Parent.Children[Index + 1])._textureIndex &&
                _indirect == ((SRT0TextureNode) Parent.Children[Index + 1])._indirect)
            {
                DoMoveDown();
                if (index != Index)
                {
                    CheckNext();
                }
            }
        }

CheckPrev()

void BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.CheckPrev ( )

inline

        {
            if (Index == 0)
            {
                return;
            }

            int index = Index;
            if (_indirect == false && ((SRT0TextureNode) Parent.Children[Index - 1])._indirect ||
                _textureIndex < ((SRT0TextureNode) Parent.Children[Index - 1])._textureIndex &&
                _indirect == ((SRT0TextureNode) Parent.Children[Index - 1])._indirect)
            {
                DoMoveUp();
                if (index != Index)
                {
                    CheckPrev();
                }
            }
        }

Export()

override void BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.Export ( string  outPath )

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            int dataLen = OnCalculateSize(true);
            using (FileStream stream = new FileStream(outPath, FileMode.OpenOrCreate, FileAccess.ReadWrite,
                FileShare.None, 8, FileOptions.RandomAccess))
            {
                stream.SetLength(dataLen);
                using (FileMap map = FileMap.FromStream(stream))
                {
                    AnimationConverter.EncodeSRT0Keyframes(Keyframes, map.Address, map.Address + _entryLength, _code);
                }
            }
        }

GetAnimFrame()

SRTAnimationFrame BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.GetAnimFrame ( int  index )

inline

        {
            SRTAnimationFrame frame = new SRTAnimationFrame {Index = index};
            float* dPtr = (float*) &frame;
            for (int x = 0; x < 5; x++)
            {
                frame.SetBool(x, Keyframes.GetKeyframe(x, index) != null);
                *dPtr++ = GetFrameValue(x, index);
            }

            return frame;
        }

GetFrameValue()

float BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.GetFrameValue ( int  arrayIndex, float  index  )

inline

        {
            return Keyframes.GetFrameValue(arrayIndex, index);
        }

GetKeyframe()

KeyframeEntry BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.GetKeyframe ( int  arrayIndex, int  index  )

inline

        {
            return Keyframes.GetKeyframe(arrayIndex, index);
        }

OnCalculateSize()

override int BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.OnCalculateSize ( bool  force )

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            _dataLength = AnimationConverter.CalculateSRT0Size(Keyframes, out _entryLength, out _code);
            return _dataLength + _entryLength;
        }

OnInitialize()

override bool BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.OnInitialize ( )

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            if (_name == null)
            {
                _name = (_indirect ? "Ind" : "") + "Texture" + _textureIndex;
            }

            _code = Header->Code;

            _keyframes = null;

            return false;
        }

OnRebuild()

override void BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.OnRebuild ( VoidPtr  address, int  length, bool  force  )

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            AnimationConverter.EncodeSRT0Keyframes(_keyframes, address, _dataAddr, _code);
        }

RemoveKeyframe() [1/2]

void BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.RemoveKeyframe ( int  arrayIndex, int  index  )

inline

        {
            KeyframeEntry k = Keyframes.Remove(arrayIndex, index);
            if (k != null && _generateTangents)
            {
                k.GenerateTangent();
                k._prev.GenerateTangent();
                k._next.GenerateTangent();
            }
        }

RemoveKeyframe() [2/2]

void BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.RemoveKeyframe ( int  index )

inline

        {
            for (int i = 0; i < 5; i++)
            {
                RemoveKeyframe(i, index);
            }
        }

RemoveKeyframeOnlyRot()

void BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.RemoveKeyframeOnlyRot ( int  index )

inline

        {
            RemoveKeyframe(2, index);
        }

RemoveKeyframeOnlyScale()

void BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.RemoveKeyframeOnlyScale ( int  index )

inline

        {
            for (int i = 0; i < 2; i++)
            {
                RemoveKeyframe(i, index);
            }
        }

RemoveKeyframeOnlyTrans()

void BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.RemoveKeyframeOnlyTrans ( int  index )

inline

        {
            for (int i = 3; i < 5; i++)
            {
                RemoveKeyframe(i, index);
            }
        }

SetKeyframe() [1/2]

KeyframeEntry BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.SetKeyframe ( int  arrayIndex, int  index, float  value  )

inline

        {
            bool exists = Keyframes.GetKeyframe(arrayIndex, index) != null;
            KeyframeEntry k = Keyframes.SetFrameValue(arrayIndex, index, value);

            if (!exists && !_generateTangents)
            {
                k.GenerateTangent();
            }

            if (_generateTangents)
            {
                k.GenerateTangent();
                k._prev.GenerateTangent();
                k._next.GenerateTangent();
            }

            SignalPropertyChange();
            return k;
        }

SetKeyframe() [2/2]

void BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.SetKeyframe ( int  index, SRTAnimationFrame  frame  )

inline

        {
            float* v = (float*) &frame;
            for (int i = 0; i < 5; i++)
            {
                SetKeyframe(i, index, *v++);
            }
        }

SetKeyframeOnlyRot() [1/2]

void BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.SetKeyframeOnlyRot ( int  index, float  rot  )

inline

        {
            SetKeyframe(2, index, rot);
        }

SetKeyframeOnlyRot() [2/2]

void BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.SetKeyframeOnlyRot ( int  index, SRTAnimationFrame  frame  )

inline

        {
            SetKeyframe(2, index, frame.Rotation);
        }

SetKeyframeOnlyScale() [1/2]

void BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.SetKeyframeOnlyScale ( int  index, SRTAnimationFrame  frame  )

inline

        {
            float* v = (float*) &frame.Scale;
            for (int i = 0; i < 2; i++)
            {
                SetKeyframe(i, index, *v++);
            }
        }

SetKeyframeOnlyScale() [2/2]

void BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.SetKeyframeOnlyScale ( int  index, Vector2  scale  )

inline

        {
            float* v = (float*) &scale;
            for (int i = 0; i < 2; i++)
            {
                SetKeyframe(i, index, *v++);
            }
        }

SetKeyframeOnlyTrans() [1/2]

void BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.SetKeyframeOnlyTrans ( int  index, SRTAnimationFrame  frame  )

inline

        {
            float* v = (float*) &frame.Translation;
            for (int i = 3; i < 5; i++)
            {
                SetKeyframe(i, index, *v++);
            }
        }

SetKeyframeOnlyTrans() [2/2]

void BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.SetKeyframeOnlyTrans ( int  index, Vector2  trans  )

inline

        {
            float* v = (float*) &trans;
            for (int i = 3; i < 5; i++)
            {
                SetKeyframe(i, index, *v++);
            }
        }

Member Data Documentation

_generateTangents

bool BrawlLib.SSBB.ResourceNodes.SRT0TextureNode._generateTangents = true

static

_indirect

bool BrawlLib.SSBB.ResourceNodes.SRT0TextureNode._indirect

_textureIndex

int BrawlLib.SSBB.ResourceNodes.SRT0TextureNode._textureIndex

Property Documentation

FrameCount

int BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.FrameCount

get

Implements BrawlLib.Wii.Animations.IKeyframeSource.

Indirect

bool BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.Indirect

getset

        {
            get => _indirect;
            set
            {
                foreach (SRT0TextureNode t in Parent.Children)
                {
                    if (t.Index != Index && t._textureIndex == _textureIndex && t._indirect == value)
                    {
                        return;
                    }
                }

                _indirect = value;

                Name = (_indirect ? "Ind" : "") + "Texture" + _textureIndex;

                CheckNext();
                CheckPrev();
            }
        }

KeyArrays

KeyframeArray [] BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.KeyArrays

get

Implements BrawlLib.Wii.Animations.IKeyframeSource.

Keyframes

KeyframeCollection BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.Keyframes

get

        {
            get
            {
                if (_keyframes == null)
                {
                    System.Diagnostics.Debug.WriteLine((IntPtr) Header);
                    _keyframes = AnimationConverter.DecodeKeyframes(Header,
                        Parent?.Parent as SRT0Node, 5, 1, 1);
                }

                return _keyframes;
            }
        }

ResourceFileType

override ResourceType BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.ResourceFileType

get

TextureIndex

int BrawlLib.SSBB.ResourceNodes.SRT0TextureNode.TextureIndex

getset

        {
            get => _textureIndex;
            set
            {
                int val = _indirect ? value.Clamp(0, 2) : value.Clamp(0, 7);

                foreach (SRT0TextureNode t in Parent.Children)
                {
                    if (t.Index != Index && t._textureIndex == val && t._indirect == _indirect)
                    {
                        return;
                    }
                }

                _textureIndex = val;

                Name = (_indirect ? "Ind" : "") + "Texture" + _textureIndex;

                CheckNext();
                CheckPrev();
            }
        }

---

The documentation for this class was generated from the following file:

• BrawlLib/SSBB/ResourceNodes/Animations/SRT0Node.cs
