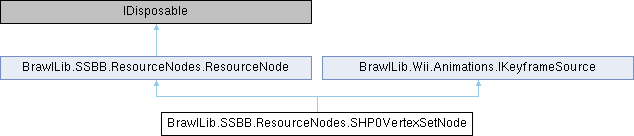

Inheritance diagram for BrawlLib.SSBB.ResourceNodes.SHP0VertexSetNode:

Public Member Functions
	SHP0VertexSetNode (string name)

override bool	OnInitialize ()

override int	OnCalculateSize (bool force)

override void	OnRebuild (VoidPtr address, int length, bool force)

override void	Export (string outPath)

KeyframeEntry	GetKeyframe (int index)

void	SetKeyframe (int index, float value)

void	RemoveKeyframe (int index)

Public Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
void	OnRenamed ()

List< ResourceNode >	GetChildrenRecursive ()
	Used primarily to get bone lists. Kept for all resource nodes for utility. More...

virtual void	SignalPropertyChange ()

virtual void	Dispose ()

void	SelectChildAtIndex (int index)

void	UpdateProperties ()

void	UpdateCurrentControl ()

virtual bool	MoveUp ()

virtual bool	MoveDown ()

virtual void	OnMoved ()

virtual void	DoMoveDown ()

virtual void	DoMoveDown (bool select)

virtual void	DoMoveUp ()

virtual void	DoMoveUp (bool select)

virtual bool	AddUp ()

virtual bool	AddDown ()

virtual bool	ToParent ()

void	Populate (int levels=-1)

virtual void	OnPopulate ()

void	Initialize (ResourceNode parent, FileMap source)

void	Initialize (ResourceNode parent, VoidPtr address, int length)

void	Initialize (ResourceNode parent, DataSource origSource)

virtual void	Initialize (ResourceNode parent, DataSource origSource, DataSource uncompSource)

virtual bool	OnInitialize ()

virtual void	Restore ()

virtual void	Remove ()

virtual void	RemoveChild (ResourceNode child)

virtual void	AddChild (ResourceNode child)

virtual void	AddChild (ResourceNode child, bool change)

virtual void	InsertChild (ResourceNode child, int index)

virtual void	InsertChild (ResourceNode child, bool change, int index)

void	SetSizeInternal (int size)

virtual void	Replace (string fileName)

virtual void	Replace (ResourceNode node)

virtual void	Replace (string fileName, FileMapProtect prot, FileOptions options)

virtual void	ReplaceRaw (VoidPtr address, int length)

virtual void	ReplaceRaw (FileMap map)

virtual void	Export (string outPath)

void	Export (FileStream outStream)

virtual void	ExportUncompressed (string outPath)

void	ExportUncompressed (FileStream outStream)

virtual void	Rebuild ()

virtual void	Rebuild (bool force)

virtual void	Rebuild (VoidPtr address, int length, bool force)

virtual void	OnRebuild (VoidPtr address, int length, bool force)

virtual int	CalculateSize (bool force)

virtual int	OnCalculateSize (bool force)

void	Merge ()

void	Merge (bool forceBuild)

ResourceNode	FindChildByType (string path, bool searchChildren, params ResourceType[] types)

ResourceNode	FindChildByType (string path, bool searchChildren, StringComparison compare, params ResourceType[] types)

ResourceNode	FindChild (string path)

ResourceNode	FindChild (string path, bool searchChildren)

ResourceNode	FindChild (string path, StringComparison compare)

ResourceNode	FindChild (string path, bool searchChildren, StringComparison compare)

ResourceNode[]	FindChildrenByClassType (string path, Type type)

ResourceNode[]	FindChildrenByType (string path, ResourceType type)

ResourceNode[]	FindChildrenByTypeInGroup (string path, ResourceType type, byte group)

ResourceNode[]	FindChildrenByName (string name)

unsafe string	FindName (string name)

ResourceNode	FindEmbeddedIndex (int index)

virtual unsafe byte[]	MD5 ()
	Find the MD5 checksum of this node's data. If this node doesn't have any data (BRESGroupNode, for example), this method will return null. More...

string	MD5Str ()
	Get the result of the MD5() function as a string of hexadecimal digits. If MD5() returns null, this method will return an empty string. More...

ResourceNode	PrevSibling ()

ResourceNode	NextSibling ()

override string	ToString ()

virtual void	SortChildren ()

Public Attributes
int	_dataLen

VoidPtr	_dataAddr

bool	_isFixed

float	_fixedValue

Public Attributes inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
Form	_mainForm

string	_name

string	_origPath

ResourceNode	_parent

List< ResourceNode >	_children = new List<ResourceNode>()

int	_calcSize

EventHandler	UpdateControl

MoveEventHandler	MovedDown

ResourceEventHandler	Renamed

ResourceEventHandler	PropertyChanged

ResourceEventHandler	Replaced

ResourceEventHandler	Restored

ResourceChildEventHandler	ChildRemoved

bool	_isPopulating

bool	_replaced

Static Public Attributes
static bool	_generateTangents = true

Properties
override ResourceType	ResourceFileType `[get]`

int	FrameCount `[get]`

KeyframeArray	Keyframes `[get]`

KeyframeArray[]	KeyArrays `[get]`

Properties inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
string	FilePath `[get]`

string	FileName `[get]`

string	DirectoryName `[get]`

ResourceNode	RootNode `[get]`

DataSource	OriginalSource `[get]`

DataSource	UncompressedSource `[get]`

DataSource	WorkingSource `[get]`

DataSource	WorkingUncompressed `[get]`

virtual bool	HasChildren `[get]`

virtual ResourceType	ResourceFileType `[get]`

string	NodeType `[get]`

virtual string	TreePathAbsolute `[get]`

virtual string	TreePath `[get]`

virtual int	Level `[get]`

virtual int	MaxNameLength `[get]`

virtual bool	AllowDuplicateNames `[get]`

virtual bool	AllowNullNames `[get]`

virtual string	Name `[get, set]`

ResourceNode	Parent `[get, set]`

List< ResourceNode >	Children `[get]`

int	Index `[get]`

int	HexIndex `[get]`

bool	IsCompressed `[get]`

bool	HasChanged `[get, set]`

bool	IsBranch `[get]`

bool	HasMerged `[get]`

virtual bool	AllowSaving `[get, set]`

virtual bool	IsDirty `[get, set]`

virtual uint	UncompressedSize `[get]`

virtual Type[]	AllowedChildTypes `[get]`

virtual string	Compression `[get, set]`

virtual bool	RetainChildrenOnReplace `[get]`

virtual bool	supportsCompression `[get]`

static MD5CryptoServiceProvider	MD5Provider `[get]`

Properties inherited from BrawlLib.Wii.Animations.IKeyframeSource
int	FrameCount `[get]`

KeyframeArray[]	KeyArrays `[get]`

Additional Inherited Members
Static Public Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
static ResourceNode[]	FindAllSubNodes (ResourceNode root)

static ResourceNode	FindNode (ResourceNode root, string path, bool searchChildren, StringComparison compare)

Protected Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
void	ForceReplacedEvent ()

virtual void	MergeInternal ()

Events inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
SelectEventHandler	SelectChild

EventHandler	UpdateProps

MoveEventHandler	MovedUp

ResourceEventHandler	Disposing

ResourceChildEventHandler	ChildAdded

ResourceChildInsertEventHandler	ChildInserted

Constructor & Destructor Documentation

◆ SHP0VertexSetNode()

BrawlLib.SSBB.ResourceNodes.SHP0VertexSetNode.SHP0VertexSetNode ( string name )

inline

        {
            _name = name;
        }

Member Function Documentation

◆ Export()

override void BrawlLib.SSBB.ResourceNodes.SHP0VertexSetNode.Export ( string outPath )

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            int length = OnCalculateSize(true);
            using (FileStream stream = new FileStream(outPath, FileMode.OpenOrCreate, FileAccess.ReadWrite,
                FileShare.None, 8, FileOptions.RandomAccess))
            {
                stream.SetLength(length);
                using (FileMap map = FileMap.FromStream(stream))
                {
                    OnRebuild(map.Address, length, true);
                }
            }
        }

◆ GetKeyframe()

KeyframeEntry BrawlLib.SSBB.ResourceNodes.SHP0VertexSetNode.GetKeyframe ( int index )

inline

        {
            return Keyframes.GetKeyframe(index);
        }

◆ OnCalculateSize()

override int BrawlLib.SSBB.ResourceNodes.SHP0VertexSetNode.OnCalculateSize ( bool force )

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            _isFixed = Keyframes._keyCount <= 1;
            return _dataLen = _isFixed ? 0 : Keyframes._keyCount * 12 + 4;
        }

◆ OnInitialize()

override bool BrawlLib.SSBB.ResourceNodes.SHP0VertexSetNode.OnInitialize ( )

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            return false;
        }

◆ OnRebuild()

override void BrawlLib.SSBB.ResourceNodes.SHP0VertexSetNode.OnRebuild	(	VoidPtr	address,
		int	length,
		bool	force
	)

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            SHP0KeyframeEntries* header = (SHP0KeyframeEntries*) address;
            header->_numEntries = (short) Keyframes._keyCount;
            header->_unk1 = 0;

            BVec3* entry = header->Entries;
            KeyframeEntry frame, root = Keyframes._keyRoot;
            for (frame = root._next; frame._index != -1; frame = frame._next)
            {
                *entry++ = new Vector3(frame._tangent, frame._index, frame._value);
            }
        }

◆ RemoveKeyframe()

void BrawlLib.SSBB.ResourceNodes.SHP0VertexSetNode.RemoveKeyframe ( int index )

inline

        {
            KeyframeEntry k = Keyframes.Remove(index);
            if (k != null && _generateTangents)
            {
                k._prev.GenerateTangent();
                k._next.GenerateTangent();
                SignalPropertyChange();
            }
        }

◆ SetKeyframe()

void BrawlLib.SSBB.ResourceNodes.SHP0VertexSetNode.SetKeyframe	(	int	index,
		float	value
	)

inline

        {
            bool exists = Keyframes.GetKeyframe(index) != null;
            KeyframeEntry k = Keyframes.SetFrameValue(index, value);

            if (!exists && !_generateTangents)
            {
                k.GenerateTangent();
            }

            if (_generateTangents)
            {
                k.GenerateTangent();
                k._prev.GenerateTangent();
                k._next.GenerateTangent();
            }

            SignalPropertyChange();
        }

Member Data Documentation

◆ _dataAddr

VoidPtr BrawlLib.SSBB.ResourceNodes.SHP0VertexSetNode._dataAddr

◆ _dataLen

int BrawlLib.SSBB.ResourceNodes.SHP0VertexSetNode._dataLen

◆ _fixedValue

float BrawlLib.SSBB.ResourceNodes.SHP0VertexSetNode._fixedValue

◆ _generateTangents

bool BrawlLib.SSBB.ResourceNodes.SHP0VertexSetNode._generateTangents = true

static

◆ _isFixed

bool BrawlLib.SSBB.ResourceNodes.SHP0VertexSetNode._isFixed

Property Documentation

◆ FrameCount

int BrawlLib.SSBB.ResourceNodes.SHP0VertexSetNode.FrameCount

get

Implements BrawlLib.Wii.Animations.IKeyframeSource.

◆ KeyArrays

KeyframeArray [] BrawlLib.SSBB.ResourceNodes.SHP0VertexSetNode.KeyArrays

get

Implements BrawlLib.Wii.Animations.IKeyframeSource.

◆ Keyframes

KeyframeArray BrawlLib.SSBB.ResourceNodes.SHP0VertexSetNode.Keyframes

get

        {
            get
            {
                if (_keyframes == null)
                {
                    _keyframes =
                        AnimationConverter.DecodeSHP0Keyframes(Header,
                            Parent != null ? Parent.Parent as SHP0Node : null);
                }

                return _keyframes;
            }
        }

◆ ResourceFileType

override ResourceType BrawlLib.SSBB.ResourceNodes.SHP0VertexSetNode.ResourceFileType

get

The documentation for this class was generated from the following file:

BrawlLib/SSBB/ResourceNodes/Animations/SHP0Node.cs
