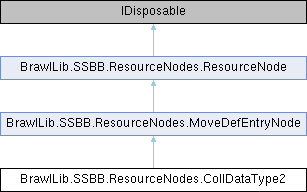

Inheritance diagram for BrawlLib.SSBB.ResourceNodes.CollDataType2:

Public Member Functions
override bool	OnInitialize ()

override int	OnCalculateSize (bool force)

override void	OnRebuild (VoidPtr address, int length, bool force)

Public Member Functions inherited from BrawlLib.SSBB.ResourceNodes.MoveDefEntryNode
override void	Rebuild (bool force)

override bool	OnInitialize ()

ActionEventInfo	GetEventInfo (long id)

override void	SortChildren ()

ResourceNode	FindNode (int offset)

ResourceNode	GetByOffsetID (int id)

virtual void	PostProcess ()

Public Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
void	OnRenamed ()

List< ResourceNode >	GetChildrenRecursive ()
	Used primarily to get bone lists. Kept for all resource nodes for utility. More...

virtual void	SignalPropertyChange ()

virtual void	Dispose ()

void	SelectChildAtIndex (int index)

void	UpdateProperties ()

void	UpdateCurrentControl ()

virtual bool	MoveUp ()

virtual bool	MoveDown ()

virtual void	OnMoved ()

virtual void	DoMoveDown ()

virtual void	DoMoveDown (bool select)

virtual void	DoMoveUp ()

virtual void	DoMoveUp (bool select)

virtual bool	AddUp ()

virtual bool	AddDown ()

virtual bool	ToParent ()

void	Populate (int levels=-1)

virtual void	OnPopulate ()

void	Initialize (ResourceNode parent, FileMap source)

void	Initialize (ResourceNode parent, VoidPtr address, int length)

void	Initialize (ResourceNode parent, DataSource origSource)

virtual void	Initialize (ResourceNode parent, DataSource origSource, DataSource uncompSource)

virtual bool	OnInitialize ()

virtual void	Restore ()

virtual void	Remove ()

virtual void	RemoveChild (ResourceNode child)

virtual void	AddChild (ResourceNode child)

virtual void	AddChild (ResourceNode child, bool change)

virtual void	InsertChild (ResourceNode child, int index)

virtual void	InsertChild (ResourceNode child, bool change, int index)

void	SetSizeInternal (int size)

virtual void	Replace (string fileName)

virtual void	Replace (ResourceNode node)

virtual void	Replace (string fileName, FileMapProtect prot, FileOptions options)

virtual void	ReplaceRaw (VoidPtr address, int length)

virtual void	ReplaceRaw (FileMap map)

virtual void	Export (string outPath)

void	Export (FileStream outStream)

virtual void	ExportUncompressed (string outPath)

void	ExportUncompressed (FileStream outStream)

virtual void	Rebuild ()

virtual void	Rebuild (bool force)

virtual void	Rebuild (VoidPtr address, int length, bool force)

virtual void	OnRebuild (VoidPtr address, int length, bool force)

virtual int	CalculateSize (bool force)

virtual int	OnCalculateSize (bool force)

void	Merge ()

void	Merge (bool forceBuild)

ResourceNode	FindChildByType (string path, bool searchChildren, params ResourceType[] types)

ResourceNode	FindChildByType (string path, bool searchChildren, StringComparison compare, params ResourceType[] types)

ResourceNode	FindChild (string path)

ResourceNode	FindChild (string path, bool searchChildren)

ResourceNode	FindChild (string path, StringComparison compare)

ResourceNode	FindChild (string path, bool searchChildren, StringComparison compare)

ResourceNode[]	FindChildrenByClassType (string path, Type type)

ResourceNode[]	FindChildrenByType (string path, ResourceType type)

ResourceNode[]	FindChildrenByTypeInGroup (string path, ResourceType type, byte group)

ResourceNode[]	FindChildrenByName (string name)

unsafe string	FindName (string name)

ResourceNode	FindEmbeddedIndex (int index)

virtual unsafe byte[]	MD5 ()
	Find the MD5 checksum of this node's data. If this node doesn't have any data (BRESGroupNode, for example), this method will return null. More...

string	MD5Str ()
	Get the result of the MD5() function as a string of hexadecimal digits. If MD5() returns null, this method will return an empty string. More...

ResourceNode	PrevSibling ()

ResourceNode	NextSibling ()

override string	ToString ()

virtual void	SortChildren ()

Public Attributes
int	type

int	flags

float	unk1

float	unk2

float	unk3

float	unk4

Public Attributes inherited from BrawlLib.SSBB.ResourceNodes.MoveDefEntryNode
int	_lookupCount

List< int >	_lookupOffsets = new List<int>()

VoidPtr	_entryOffset = 0

int	_entryLength

int	_childLength

MoveDefExternalNode	_extNode

bool	_extOverride = false

int	offsetID

bool	isExtra = false

Public Attributes inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
Form	_mainForm

string	_name

string	_origPath

ResourceNode	_parent

List< ResourceNode >	_children = new List<ResourceNode>()

int	_calcSize

EventHandler	UpdateControl

MoveEventHandler	MovedDown

ResourceEventHandler	Renamed

ResourceEventHandler	PropertyChanged

ResourceEventHandler	Replaced

ResourceEventHandler	Restored

ResourceChildEventHandler	ChildRemoved

bool	_isPopulating

bool	_replaced

Properties
override ResourceType	ResourceFileType `[get]`

int	Type `[get]`

int	Flags `[get, set]`

float	Unknown1 `[get, set]`

float	Unknown2 `[get, set]`

float	Unknown3 `[get, set]`

float	Unknown4 `[get, set]`

Properties inherited from BrawlLib.SSBB.ResourceNodes.MoveDefEntryNode
VoidPtr	_rebuildBase `[get]`

int	_rebuildOffset `[get]`

VoidPtr	Data `[get]`

VoidPtr	BaseAddress `[get]`

MDL0Node	Model `[get]`

MoveDefNode	Root `[get]`

int	IntOffset `[get]`

int	_offset `[get]`

string	HexOffset `[get]`

int	Size `[get]`

bool	External `[get]`

override ResourceType	ResourceFileType `[get]`

Properties inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
string	FilePath `[get]`

string	FileName `[get]`

string	DirectoryName `[get]`

ResourceNode	RootNode `[get]`

DataSource	OriginalSource `[get]`

DataSource	UncompressedSource `[get]`

DataSource	WorkingSource `[get]`

DataSource	WorkingUncompressed `[get]`

virtual bool	HasChildren `[get]`

virtual ResourceType	ResourceFileType `[get]`

string	NodeType `[get]`

virtual string	TreePathAbsolute `[get]`

virtual string	TreePath `[get]`

virtual int	Level `[get]`

virtual int	MaxNameLength `[get]`

virtual bool	AllowDuplicateNames `[get]`

virtual bool	AllowNullNames `[get]`

virtual string	Name `[get, set]`

ResourceNode	Parent `[get, set]`

List< ResourceNode >	Children `[get]`

int	Index `[get]`

int	HexIndex `[get]`

bool	IsCompressed `[get]`

bool	HasChanged `[get, set]`

bool	IsBranch `[get]`

bool	HasMerged `[get]`

virtual bool	AllowSaving `[get, set]`

virtual bool	IsDirty `[get, set]`

virtual uint	UncompressedSize `[get]`

virtual Type[]	AllowedChildTypes `[get]`

virtual string	Compression `[get, set]`

virtual bool	RetainChildrenOnReplace `[get]`

virtual bool	supportsCompression `[get]`

static MD5CryptoServiceProvider	MD5Provider `[get]`

Additional Inherited Members
Static Public Member Functions inherited from BrawlLib.SSBB.ResourceNodes.MoveDefEntryNode
static int	Compare (ResourceNode n1, ResourceNode n2)

static int	ActionCompare (ResourceNode n1, ResourceNode n2)

Static Public Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
static ResourceNode[]	FindAllSubNodes (ResourceNode root)

static ResourceNode	FindNode (ResourceNode root, string path, bool searchChildren, StringComparison compare)

Protected Member Functions inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
void	ForceReplacedEvent ()

virtual void	MergeInternal ()

Events inherited from BrawlLib.SSBB.ResourceNodes.ResourceNode
SelectEventHandler	SelectChild

EventHandler	UpdateProps

MoveEventHandler	MovedUp

ResourceEventHandler	Disposing

ResourceChildEventHandler	ChildAdded

ResourceChildInsertEventHandler	ChildInserted

Member Function Documentation

◆ OnCalculateSize()

override int BrawlLib.SSBB.ResourceNodes.CollDataType2.OnCalculateSize ( bool force )

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            _lookupCount = 0;
            return (flags & 2) == 2 ? 24 : 20;
        }

◆ OnInitialize()

override bool BrawlLib.SSBB.ResourceNodes.CollDataType2.OnInitialize ( )

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            base.OnInitialize();
            type = Header->type;
            flags = Header->flags;
            unk1 = Header->unk1;
            unk2 = Header->unk2;
            unk3 = Header->unk3;

            if ((flags & 2) == 2)
            {
                unk4 = Header->unk4;
            }

            if (Size != 24 && Size != 20)
            {
                Console.WriteLine(Size);
            }

            return false;
        }

◆ OnRebuild()

override void BrawlLib.SSBB.ResourceNodes.CollDataType2.OnRebuild	(	VoidPtr	address,
		int	length,
		bool	force
	)

inlinevirtual

Reimplemented from BrawlLib.SSBB.ResourceNodes.ResourceNode.

        {
            _entryOffset = address;
            collData2* data = (collData2*) address;
            data->type = 2;
            data->flags = flags;
            data->unk1 = unk1;
            data->unk2 = unk2;
            data->unk3 = unk3;
            if ((flags & 2) == 2)
            {
                data->unk4 = unk4;
            }
        }

Member Data Documentation

◆ flags

int BrawlLib.SSBB.ResourceNodes.CollDataType2.flags

◆ type

int BrawlLib.SSBB.ResourceNodes.CollDataType2.type

◆ unk1

float BrawlLib.SSBB.ResourceNodes.CollDataType2.unk1

◆ unk2

float BrawlLib.SSBB.ResourceNodes.CollDataType2.unk2

◆ unk3

float BrawlLib.SSBB.ResourceNodes.CollDataType2.unk3

◆ unk4

float BrawlLib.SSBB.ResourceNodes.CollDataType2.unk4

Property Documentation

◆ Flags

int BrawlLib.SSBB.ResourceNodes.CollDataType2.Flags

getset

        {
            get => flags;
            set
            {
                flags = value;
                SignalPropertyChange();
            }
        }

◆ ResourceFileType

override ResourceType BrawlLib.SSBB.ResourceNodes.CollDataType2.ResourceFileType

get

◆ Type

int BrawlLib.SSBB.ResourceNodes.CollDataType2.Type

get

◆ Unknown1

float BrawlLib.SSBB.ResourceNodes.CollDataType2.Unknown1

getset

        {
            get => unk1;
            set
            {
                unk1 = value;
                SignalPropertyChange();
            }
        }

◆ Unknown2

float BrawlLib.SSBB.ResourceNodes.CollDataType2.Unknown2

getset

        {
            get => unk2;
            set
            {
                unk2 = value;
                SignalPropertyChange();
            }
        }

◆ Unknown3

float BrawlLib.SSBB.ResourceNodes.CollDataType2.Unknown3

getset

        {
            get => unk3;
            set
            {
                unk3 = value;
                SignalPropertyChange();
            }
        }

◆ Unknown4

float BrawlLib.SSBB.ResourceNodes.CollDataType2.Unknown4

getset

        {
            get => unk4;
            set
            {
                unk4 = value;
                SignalPropertyChange();
            }
        }

The documentation for this class was generated from the following file:

BrawlLib/SSBB/ResourceNodes/Moveset/Data Nodes/DataArticleNode.cs
